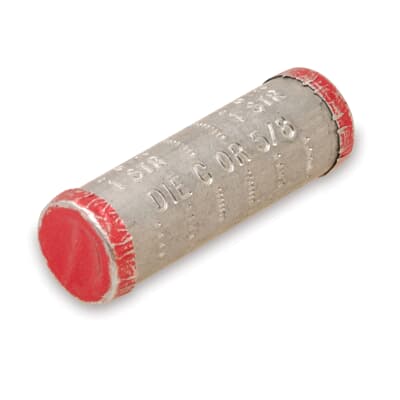

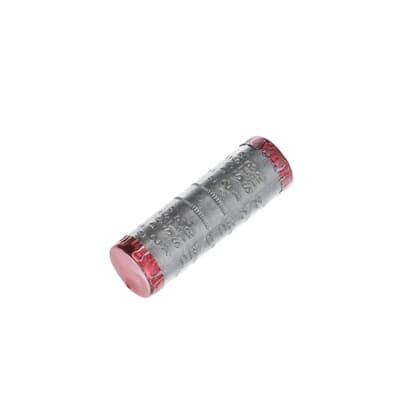

CS73 - 1 to 1 Alcu Comp Splice

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: CS73 Vendor Code TAB
Manufacturer: Blackburn Mechanical
Manufacturer's Part Number: CS73
Description: 1 to 1 Alcu Comp Splice
Service Entrance Compression Splice, #2 Awg (Ascr );#1 and #2 Awg (Stranded );#1 Awg (Solid ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 In Overall Length, Compression/Crimp Terminal, 0.05 LB/Ea
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121449 - Wire or cable compression splice
UPC/GTIN: 783786100613 / 00783786100613
Weight per unit: 0.05 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Service Entrance Compression Splice
Long Description: Service Entrance Compression Splice, #2 AWG (ASCR );#1 and #2 AWG (Stranded );#1 AWG (Solid ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 in Overall Length, Compression/Crimp Terminal, 0.05 lb/EA
Short Description: Service Entrance Compression Splice, Non-Insulated, 2 in L, 2/0 AWG (Stranded ) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material
Special Features: Constructed from Aluminum For High Conductivity;Solid Center Barriers and Large Chamfers for Easy Cable Insertion;Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture;All Splices are Color Coded and Marked with Strip Lengths
Description: 1 TO 1 ALCU COMP SPLICE
extra long description: ABB CS73 AL SERVENTR COMP SPLICE A:

Additional Information

Maximum Conductor Size: #2 AWG (ASCR );#1 and #2 AWG (Stranded );#1 AWG (Solid )
For Stud Size: 5/8 in (Die)
Insulated/Non-Insulated: Non-Insulated
for use with: Basic Uninsulated Splices for Service Entrances;For Combinations of Aluminum-to-Aluminum;Aluminum-to-Copper Conductors
package quantity: 100 CT;800 PK
Made in USA: yes
Standards Met: RUS Accepted;ANSI C119.4

Manufacturer Information

Taxonomies, Classifications, and Categories

Packaging

Uses, Certifications, and Standards

environmental conditions: All Seasons / Conditions
Application: Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
Mounting: None
standard: RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
