CSB20AC2LA - 20A 120/277VAC B+S Wire Comm DP SW La

Legrand-Pass & Seymour

$13.22 (Each)
$13.22 (Each)
$661.00 (Per 50)

In-Stock: 46 available at other locations ( find a store with stock)

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: CSB20AC2LA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: CSB20AC2-LA
Description: 20A 120/277VAC B+S Wire Comm DP SW La

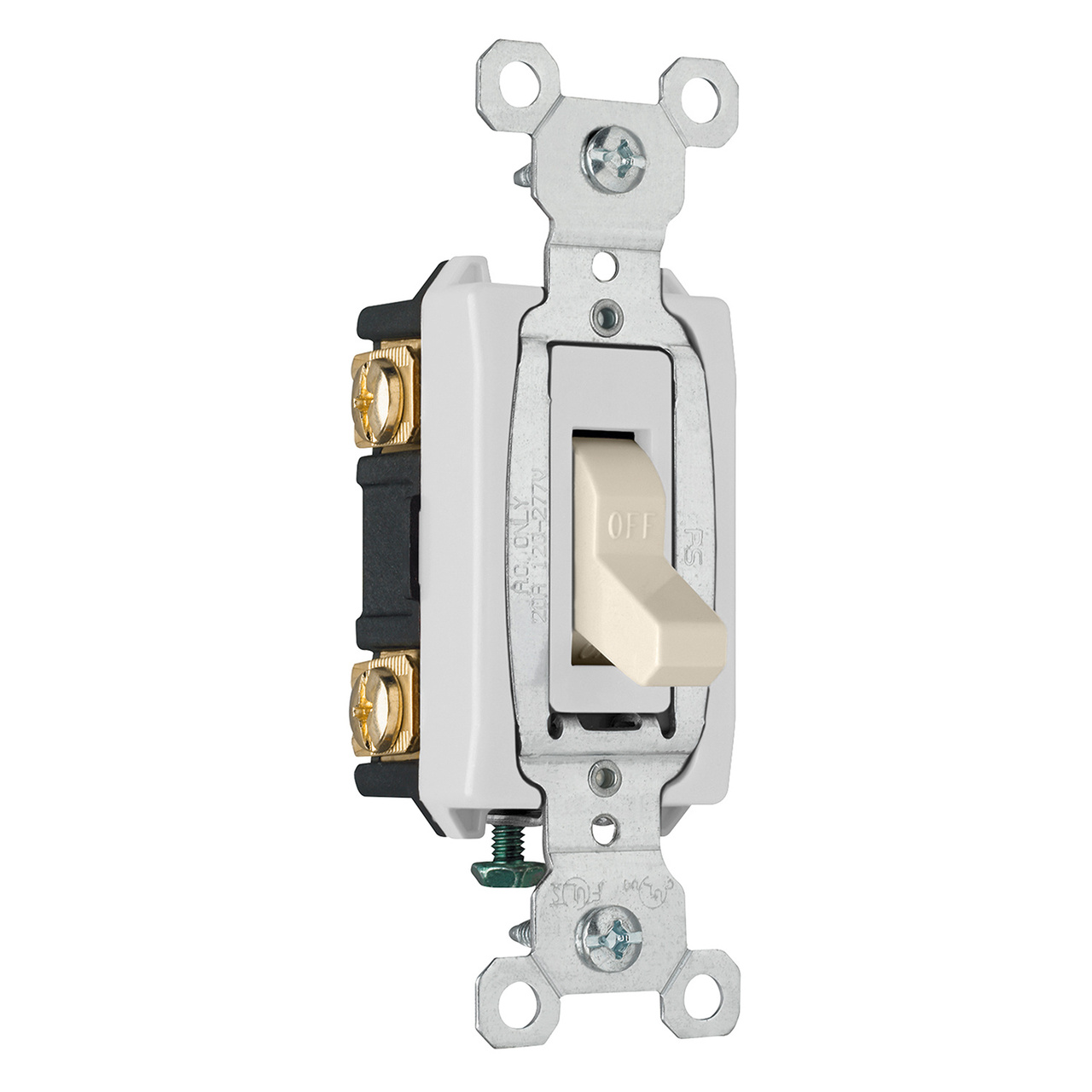

Toggle Switch, 2 Poles, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, Light Almond, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.19 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Switches Mark as Incorrect
Suggest a New Category
Classification: Residential Plates
UNSPSC: N/A
UPC/EAN/GTIN: 785007126181 / 0785007126181 / 00785007126181
Weight per unit: 0.1872 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $13.22 (Each)
Standard Packaging: $661.00 (Per 50)

Stock Availability

Nacogdoches: 0 (Find nearest stock)
All Stores: 46

Resources

Images
: CSB20AC2LA - Large Image
: CSB20AC2LA - Small Image
: CSB20AC2LA - Large Image
Other Links
: CSB20AC2LA - Other
: CSB20AC2LA - Other
: CSB20AC2LA - Other
Brochures
: CSB20AC2LA - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Actuator: Toggle
Amperage Rating: 20
Current Rating: 20 A
Insulation: False
Material: Nylon
Number Of Gangs: 1
Poles: 2
Voltage Rating: 120/277 V ac
Wire Size: #14 - #10 Awg

Material, Color, and Finish

Color: Light Almond
Contact Material: Silver Cadmium Oxide
Finish: Matte

Dimensions and Weight

Size: 3.3"

Descriptions

Description: 20A 120/277VAC B+S WIRE COMM DP SW LA
Extra Long Description: P&S CSB20AC2LA 20A 120/277VAC B+S W
Features: Construction 2pole Switch, Back & Side Wire, 20amp 120/277volt, Light Almond
Long Description: Toggle Switch, 2 Poles, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, Light Almond, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.19 lb
Product Type: Toggle Switch
Short Description: 20 A, 120/277 VAC, Toggle Switch, 2P, Light Almond
Special Features: Back & Side Wire;Locking Support;One Piece Brass Alloy Contact Arm

Additional Information

Action: TP
Actuator Type: Toggle
Connection Type: Grounding
Contact Rating: 20 Amp, 120/277 VAC
Dimensions: 1.320 (L) x 1.073 (W) x 3.281 (H) in
Indoor/Outdoor: Indoor
Load Rating: 20 A @ 120/277 VAC
Load Type: LED, Incandescent, Universal, Halogen, Fluorescent, Xenon, CFL
Maximum Operating Temperature: +115 °c
Minimum Operating Temperature: -40 °C
Mounting Type: Wall Mount
Number Of Switches: 1.0
Package Quantity: 1 CT;50 Pk
Standards Met: RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
Switch Type: Toggle
Throw Type: Double Throw
Voltage: 120 VAC, 277 VAC
Wall Plate Included: NO

Manufacturer Information

Brand: Pass and Seymour
Manufacturers Part Number: CSB20AC2LA
GTIN: 00785007126181
UPC: 785007126181

Taxonomies, Classifications, and Categories

Category Description: Residential plates
Type: SWITCH

Trade Size

Amperage: 20.0

Packaging

Weight: 0.19 lb
Weight per each: 0.1872
Carton: 1
Package: 50

Uses, Certifications, and Standards

Application: Commercial
Mounting: WALL
Nema Rating: NEMA WD-1;NEMA WD-6
Standard: CULUS, UL20, FEDSPEC

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

Total availability: 46
