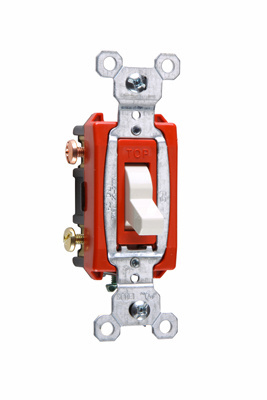

CS20AC3LA - 20A 120/277VAC S Wire Comm 3W SW La

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: CS20AC3LA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: CS20AC3LA
Description: 20A 120/277VAC S Wire Comm 3W SW La
Toggle Switch, 3 Poles, 3 Ways, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, Light Almond, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.18 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Switches Mark as Incorrect
Suggest a New Category
Classification: Commercial Switches
UNSPSC: N/A
UPC/GTIN: 785007126549 / 00785007126549
Weight per unit: 0.182 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Toggle Switch
Special Features: Side Wire;Locking Support;Heavy Duty Toggle
Long Description: Toggle Switch, 3 Poles, 3 Ways, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, Light Almond, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.18 lb
Features: Commercial 3way Switch, Side Wire, 20amp 120/277volt, Light Almond.
Short Description: 20 A, 120/277 VAC, Toggle Switch, 3P, 3W, Light Almond
Description: 20A 120/277VAC S WIRE COMM 3W SW LA
extra long description: P&S CS20AC3LA 20A 120/277VAC S WIRE

Additional Information

Connection Type: Grounding
actuator type: Toggle
Mounting Type: Wall Mount
dimensions: 1.320 (L) x 1.073 (W) x 3.281 (H) in
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +115 °c
Standards Met: RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
package quantity: 1 ct
Number of Ways: 3
media: Yes
Voltage: 120/277 V
Degree of Protection: 1500V Dielectric Withstand Voltage
indoor/outdoor: Indoor
Contact Configuration: One piece brass alloy contact arm
Contact Rating: Oversized silver alloy contacts
action: Three pole
Switch Type: Toggle

Manufacturer Information

Taxonomies, Classifications, and Categories

Trade Size

Packaging

Uses, Certifications, and Standards

nema rating: NEMA WD-1;NEMA WD-6
Application: Commercial
standard: CULUS, FEDSPEC, UL Listed E140597, Standard UL20, FedSpec WS896, Flammability Rating UL94 V2
Enclosure: Nylon
Mounting: WALL
