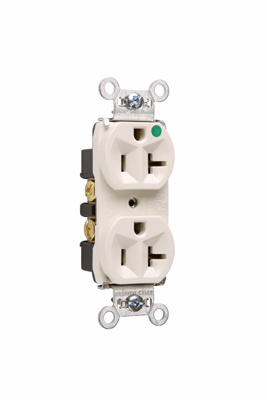

8300HLA - Compact HG Dup Rec 20A 125V La

Legrand-Pass & Seymour

$10.93 (Each)
$10.93 (Each)
$1,092.62 (Per 100)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 8300HLA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 8300HLA
Description: Compact HG Dup Rec 20A 125V La
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification: Commercial Receptacles
UNSPSC: 39121406 - Electrical receptacles
UPC/EAN/GTIN: 785007830170 / 0785007830170 / 00785007830170
Weight per unit: 0.2065 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $10.93 (Each)
Carton: $10.93 (Each)
Standard Packaging: $1,092.62 (Per 100)

Resources

Images
: 8300HLA - Small Image
: 8300HLA - Large Image
Other Links
: 8300HLA - Other
: 8300HLA - Other
: 8300HLA - Other
Brochures
: 8300HLA - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Voltage Rating: 125
Wire Size: 14 - 10
amperage rating: 20
Number of Wires: 3
connection: Back and side wire
Poles: Double Pole
Wattage: Electrical power is expressed in Amps and Volts.
Material: Nylon

Material, Color, and Finish

Color: Light Almond
Finish: Matte

Dimensions and Weight

Width: .780
Height: 3.281

Descriptions

Product Type: Compact HG Dup Rec 20A 125V La
Description: COMPACT HG DUP REC 20A 125V LA
extra long description: P&S 8300HLA COMPACT HG DUP REC 20A
Long Description: Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
Special Features: Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip

Additional Information

Voltage: 125.0 V
indoor/outdoor: Indoor
Outlet Type: Indoor, Commercial
Dielectric Strength: Withstands 2000V minimum

Manufacturer Information

Brand: LEGRAND-PASS & SEYMOUR
Manufacturers Part Number: 8300HLA
GTIN: 00785007830170
UPC: 785007830170

Taxonomies, Classifications, and Categories

Category Description: Commercial receptacles
Type: Outlet

Trade Size

Amperage: 20.0

Packaging

Weight per each: 0.2065
Carton: 1
Package: 100

Uses, Certifications, and Standards

Temperature Rating: -40° - 60° C
nema rating: 5-20R
Application: Commercial
standard: CULUS, FEDSPEC, UL498, CSA C22.2 No. 42
environmental conditions: Flammability: UL94 V2
Mounting: WALL

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of 8300HLA.

Jump to:
Cross Referenced

Jump To:

Cross Referenced

These items are similar to 8300HLA but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
8300LA	Eaton Wiring Devices	00032664719738
HBl8300HLA	Hubbell Wiring Device-Kellems	00783585147260
8300HLA	Legrand Pass & Seymour	00785007830170
PS8300HLA	Legrand Pass & Seymour	00785007860061
