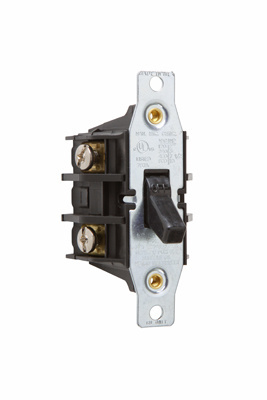

7802MD - 30A 2P SNGL PH Ac Motor Disconnet

Legrand-Pass & Seymour

$56.10 (Each)
$56.10 (Each)
$561.00 (Per 10)

In-Stock: 419 available at other locations ( find a store with stock)

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 7802MD Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 7802-MD
Description: 30A 2P SNGL PH Ac Motor Disconnet
Motor Disconneter, 2 Poles, 30 A, 600 V Ac, 1.753 (L) X 1.825 (W) X 2.375 (H) In, Box Mount, -40 °C Operating Temperature, +75 °C Operating Temperature, Toggle Actuator, 0.31 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Misc Wiring Devices Mark as Incorrect
Suggest a New Category
Classification: Industrial Switches
UNSPSC: N/A
UPC/EAN/GTIN: 785007267655 / 0785007267655 / 00785007267655
Weight per unit: 0.31 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $56.10 (Each)
Standard Packaging: $561.00 (Per 10)

Stock Availability

Nacogdoches: 0 (Find nearest stock)
All Stores: 419

Resources

Images
: 7802MD - Small Image
: 7802MD - Large Image
: 7802MD - Large Image
Other Links
: 7802MD - Other
: 7802MD - Other
: 7802MD - Other
Brochures
: 7802MD - Brochure
Attachments
: 7802MD - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Actuator: Toggle
Amperage Rating: 30
Connection: Side & Back Wired
Current Rating: 30 A
Material: Thermoplastic
Number Of Gangs: 1
Poles: 2
Voltage Rating: 600 V ac
Wattage: 600
Wire Size: #14 - #10 Awg

Material, Color, and Finish

Finish: Matte

Dimensions and Weight

Size: 1.753" Depth x 1.825" Width x 2.375" Height

Descriptions

Description: 30A 2P SNGL PH AC MOTOR DISCONNET
Extra Long Description: P&S 7802MD 30A 2P SNGL PH AC MOTOR
Features: Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.
Long Description: Motor Disconneter, 2 Poles, 30 A, 600 V ac, 1.753 (L) x 1.825 (W) x 2.375 (H) in, Box Mount, -40 °C Operating Temperature, +75 °C Operating Temperature, Toggle Actuator, 0.31 lb
Product Type: Motor Disconneter
Short Description: Double Pole, Single Phase AC Manual Controller
Special Features: Double Pole, Single Phase AC Manual Motor Controller, Suitable as Motor Disconnect

Additional Information

Actuator Type: Toggle
Dimensions: 1.753 (L) x 1.825 (W) x 2.375 (H) in
Indoor/Outdoor: Indoor
Load: 30A
Load Rating: 30 A @ 600 VAC
Load Type: LED, Xenon, Fluorescent, Universal, Halogen, Incandescent, CFL
Maximum Operating Temperature: +75 °C
Minimum Operating Temperature: -40 °C
Mounting Type: Box Mount
Number Of Switches: 1.0
Operating Cycles: 50000
Package Quantity: 1 CA;10 PK
Standards Met: CSA Listed;UL Listed
Supply Voltage: 120 V
Switch Type: Toggle
Throw Type: Double Throw
Voltage: 600.0 V
Wall Plate Included: NO

Manufacturer Information

Brand: LEGRAND-PASS & SEYMOUR
Manufacturers Part Number: 7802MD
GTIN: 00785007267655
UPC: 785007267655

Taxonomies, Classifications, and Categories

Category Description: Industrial switches
Type: Tamper-Resistant, Manual Controller

Trade Size

Amperage: 30.0

Packaging

Weight: 0.31 lb
Weight per each: 0.31
Carton: 1
Package: 10

Uses, Certifications, and Standards

Application: Commercial;Industrial
Environmental Conditions: UL94 V2
Frequency Rating: 60Hz
Mounting: BOX
Operating Temperature: Maximum continuos +75°C, minimum -40°C
Standard: CULUS, CSA Listed, UL Listed
