29W76 - TL Conn IP67 30A 3PH 480V L1630R

Legrand-Pass & Seymour

$58.21 (Each)
$58.21 (Each)
$582.10 (Per 10)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

$73.06Each

L1630CW

Eaton Wiring Devices
Conn WT 30A 480V 3PH 3P4W H/L Yl

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 29W76 Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 29W76

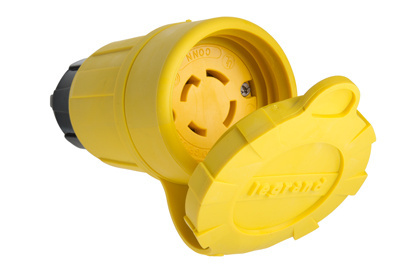

Description: TL Conn IP67 30A 3PH 480V L1630R
Locking Watertight Connector, 30AMP 3 480VOLT, Nema Configuration L16-30, Multipoint Sealing System Provides Environmental Protection Of Nema 4, 4X, 6, 6P, and IP67 Rated.
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Residential Receptacles
UNSPSC: 39121403 - Locking plug
UPC/GTIN: 785007033007 / 00785007033007
Weight per unit: 0.83 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $58.21 (Each)
Standard Packaging: $582.10 (Per 10)

Resources

Images
: 29W76 - Small Image
: 29W76 - Large Image
Other Links
: 29W76 - Other
: 29W76 - Other
: 29W76 - Other
Brochures
: 29W76 - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Material: Rubber
Wire Size: 12 - 6
Poles: 3
Phase: 3
amperage rating: 30
Number of Wires: 4
Voltage Rating: 480

Descriptions

Product Type: TL Conn IP67 30A 3PH 480V L1630R
Description: TL CONN IP67 30A 3PH 480V L1630R
extra long description: P&S 29W76 TL CONN IP67 30A 3PH 480V
Special Features: Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Long Description: Locking Watertight Connector, 30amp 3 480volt, NEMA Configuration L16-30, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated.

Additional Information

Cord Type: 12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max

Manufacturer Information

Manufacturers Part Number: 29W76
Brand: LEGRAND-PASS & SEYMOUR
GTIN: 00785007033007
UPC: 785007033007

Taxonomies, Classifications, and Categories

Category Description: Residential receptacles
Type: Locking Connector

Packaging

Weight per each: 0.83
Carton: 1
Package: 10

Uses, Certifications, and Standards

environmental conditions: Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
standard: UL Listed, CSA Listed
Application: High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors ¦ Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings ¦ Ideal for washdown areas — rated wa
nema rating: L16-30R

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of 29W76.

Jump to:
Cross Referenced

Jump To:

Cross Referenced

These items are similar to 29W76 but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
L1630CW	Eaton Wiring Devices	00040893642130
HBL29W76	Hubbell Wiring Device-Kellems	00783585131894
29W76	Leviton	00078477968796
29W76	Legrand Pass & Seymour	00785007033007
29W76	Woodhead	00786788713348
