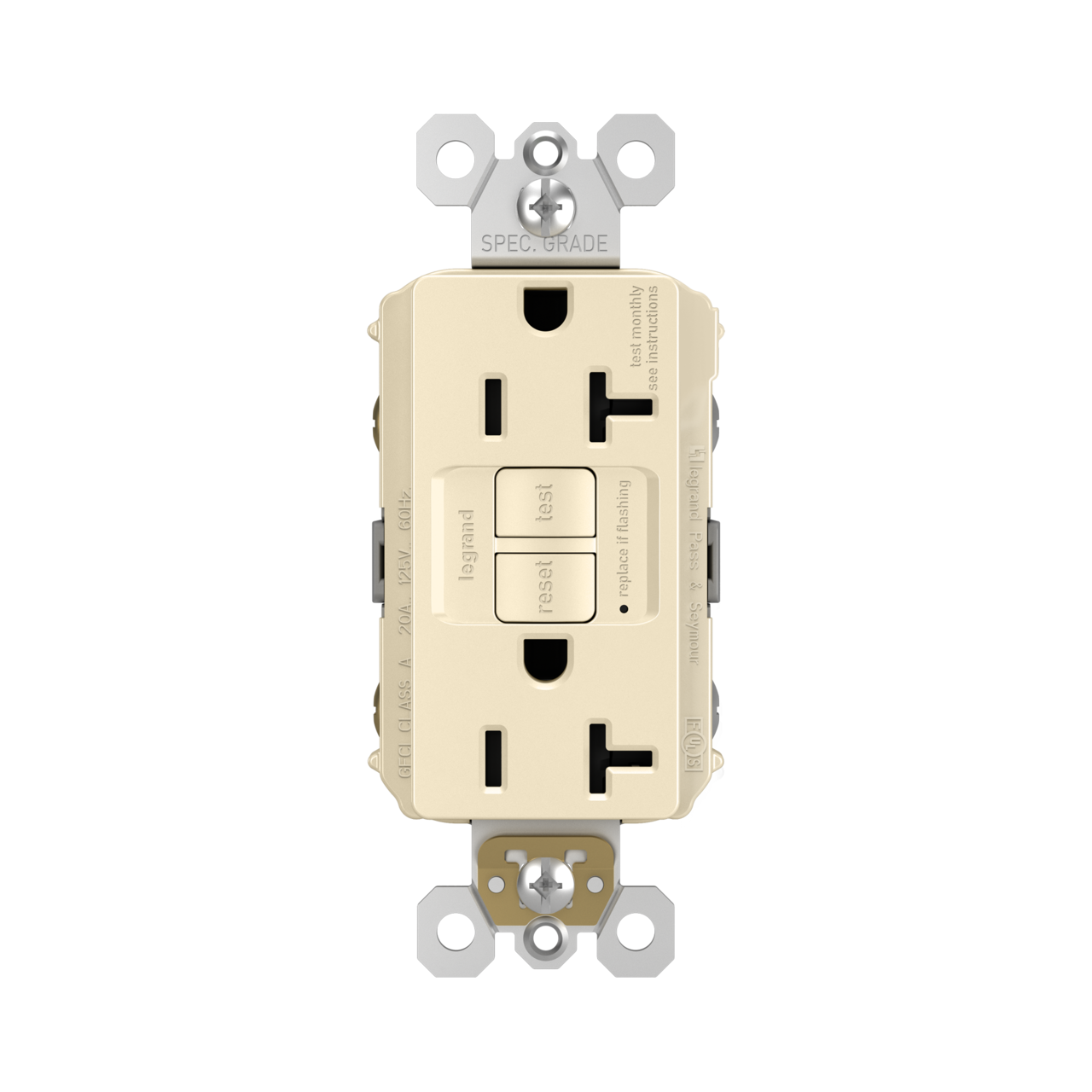

2097LA - Radiant Self Test Gfci 20A 125V La

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: 2097LA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 2097LA
Description: Radiant Self Test Gfci 20A 125V La
Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 Awg Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 HZ, 1.73 In Width, 4.20 In Height, Thermoplatic Material, Light Almond, 0.025 Sec Trip Time, 0.2800 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification: Residential Gfci Devices
UNSPSC: 39121633 - Circuit interruptor
UPC/GTIN: 785007036480 / 00785007036480
Weight per unit: 0.275 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Self-Test Duplex Receptacle
extra long description: P&S 2097LA RADIANT SELF TEST GFCI 2
Long Description: Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplatic Material, Light Almond, 0.025 sec Trip Time, 0.2800 lb
Special Features: 10 kA Short Circuit Rating;20 Amp Feed-Thru Capacity
Features: The radiant(R) collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock(TM) Protection feature: if critical components are damaged and protection is lost, po
Short Description: 20 A, 125 V, Self-Test Duplex Receptacle, Light Almond, GFCI, WR
Description: RADIANT SELF TEST GFCI 20A 125V LA

Additional Information

actuator type: Control Circuit
Connection Type: Back and Side Wired
Trip Time: 0.025 sec
package quantity: 1 CT;10 PK
Standards Met: cULus Listed;UL Listed;fsUL Listed;UL 94 v2;UL498;Federal Specifications
Receptacle Type: Self Test Duplex
Compatible Wire Size: #14 to #10 AWG
media: Yes
Trip Type: .025 Second Nominal
trip range: 4 to 6 mA
