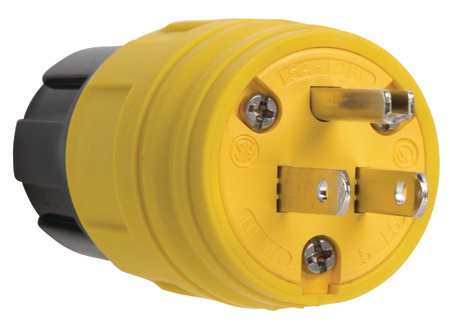

14W47 - STR Blade IP67 Plug 15A 125V 5-15P

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: 14W47 Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 14W-47
Description: STR Blade IP67 Plug 15A 125V 5-15P
Straight Blade Plug, 15 A, 125 V, 2 Poles, 3 Wires, Yellow, -40 °C Operating Temperature, +60 °C Operating Temperature, Screw Terminal, 1.85 In Diameter, 4.03 In Length, #18 to #12 Awg Wire Size, Impact Resistant, Chemical Resistant;Corrosion Resistant, 0.29 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Industrial Cord Connectors
UNSPSC: 39121402 - Electrical plugs
UPC/EAN/GTIN: 785007114140 / 0785007114140 / 00785007114140
Weight per unit: 0.2865 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Current Rating: 15 A
Number of Wires: 3
Material: Santoprene[T] Thermoplastic Elastomeric Over Polypropylene (Outer Shell);Nylon (Interior Body)
Terminal Type: Screw
Wire Size: #18 to #12 AWG
Voltage Rating: 125
amperage rating: 15
Poles: Double Pole

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Straight Blade Plug
Long Description: Straight Blade Plug, 15 A, 125 V, 2 Poles, 3 Wires, Yellow, -40 °C Operating Temperature, +60 °C Operating Temperature, Screw Terminal, 1.85 in Diameter, 4.03 in Length, #18 to #12 AWG Wire Size, Impact Resistant, Chemical Resistant;Corrosion Resistant, 0.29 lb
Features: Rated watertight for 1,500 psi high-pressure hosedown, P&S plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.
Short Description: 15 A, 125 V, Straight Blade Plug, Yellow
Special Features: Watertight;Straight Body;Grounding;Nickel-Plated Contacts;Blades and Terminal Screws
Description: STR BLADE IP67 PLUG 15A 125V 5-15P
extra long description: P&S 14W47 STR BLADE IP67 PLUG 15A 1

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +60 °C
Resistance Properties: Impact Resistant;Chemical Resistant;Corrosion Resistant
package quantity: 1 ct
Standards Met: RoHS Compliant;UL Listed Standard UL498;CSA Certified, Standard CSA C22.2 No. 42;ANSI Standard
Made in USA: yes
Voltage: 125.0 V
