L1N - #1 1/2" 2 Hole Long Barrel Compression Lug

Nsi

$14.97 (Each)
$14.97 (Each)
$748.42 (Per 50)
$1,496.85 (Per 100)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: L1N Vendor Code NSI
Manufacturer: Nsi
Manufacturer's Part Number: L1N
Description: #1 1/2" 2 Hole Long Barrel Compression Lug
2 Hole Long Barrel Copper Compression Lug 1 Awg - 1/2" Bolt Long Barrel Copper Compression Lugs Are Produced From High Conductivity Copper Tubing. Allows Easy Inspection Of The Termination to Assure Complete Cable Insertion. Tin-Plated to Provide Corrosion and Low Contact Resistance. Marked With Die Index and Color Coded. Listed For 35KV Maximum When Properly Installed. Rated 600V. Culus 486A/B Listed. UL467 Listed On Sizes 6 Awg - 3/0 Awg. Temperature Rating 90 Degrees C.
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121405 - Cable or wire lug
UPC/EAN/GTIN: 662381035080 / 6623810350802 / 00662381035080
Weight per unit: 0.11 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $14.97 (Each)
Carton: $14.97 (Each)
Standard Packaging: $748.42 (Per 50)

Resources

Images
: L1N - Small Image
: L1N - Large Image
: L1N - Large Image
: L1N - Large Image
: L1N - Large Image
Other Links
: L1N - Other
Tech Bulletins
: L1N - Tech Bulletin

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Material: Copper
Voltage Rating: 600 V

Material, Color, and Finish

Color: Green
Finish: Tin Plated

Dimensions and Weight

Size: L=4.29 - W=.750 - OD=.470 - ID=.360

Descriptions

Description: #1 1/2" 2 HOLE LONG BARREL COMPRESSION LUG
Product Type: Cu CMP Lug Long 1 Awg Nema MTG Spac
extra long description: NSI L1N CU CMP Lug Long 1 AWG Nema
Features: 2 Hole Long Barrel Copper Compression Lug 1 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Long Description: 2 Hole Long Barrel Copper Compression Lug 1 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Special Features: # 1 AWG (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing

Additional Information

Cable Size: # 1 AWG (STR)
Warranty: 1 YEAR
Stud Size: 1/2
Number of Holes: 2

Manufacturer Information

Brand: NSi
GTIN: 00662381035080
UPC: 662381035080

Taxonomies, Classifications, and Categories

Category Description: Comp & Mech Lugs and Butt Splices
Type: Long Barrel - Two Hole

Packaging

Weight per each: 0.11
Carton: 1
Package: 50

Uses, Certifications, and Standards

Mounting: 1/2 Mounting Holes
environmental conditions: 90 C
Application: Terminate, Splice, Tap Power Connectors
standard: UL486A/B, UL467 (8 AWG -3/0 AWG)

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of L1N.

Jump To:

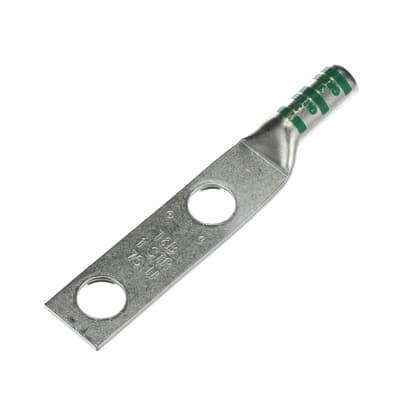

Copper Two-Hole Lug, Long Barrel, Blind End Max 35KV, Wire Size #1 Awg, 1/2 Inch...

Our Part #: 54857BE
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 54857BE
Manufacturer: Abb Installation Products, Inc
Find: Similar Items
Pkg Sizes: 10 ($144.28) · 50 ($721.38) ·

54857BE - Abb Installation Products, Inc

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$14.43

Each

QTY:

Each

Add

Spec Sheet

View In Catalog

QTY:

Each

Add

View Larger

1 Awg Cu, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Cham...

Our Part #: YA1C2N
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: YA1C2N
Manufacturer: Burndy LLC
Find: Similar Items
Pkg Sizes: 1 Each ($21.12) ·

YA1C2N - Burndy LLC

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$21.12

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

Copper Two-Hole Lug, Long Barrel, Blind End, Max 35KV, Wire Size #1 Awg, 5/16 In...

Our Part #: 54858BE
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 54858BE
Manufacturer: Abb Installation Products, Inc
Find: Similar Items
Pkg Sizes: 20 ($230.84) · 200 ($2,308.36) ·

54858BE - Abb Installation Products, Inc

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$11.54

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

Cross Referenced

These items are similar to L1N but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
31129	3M Electrical Products	00051138524982
YA1C2N	Burndy	00781810500415
YA1C-2LN	Burndy	n/a
YA1C2LN	Burndy	00781810500422
YAV1C2NFXB	Burndy	00781810310915
DPL82N	DOSSERT	n/a
CL12NR	FRANKEL	n/a
L 1N	Greaves	n/a
L1N	Greaves	00784491330197
VHCL112BN	Hubbell Power Systems	n/a
CLND-1-12-134	ILSCO	00783669635508
CLWD-1-12-134	ILSCO	00783669635515
CRC-1L2	ILSCO	n/a
CSWD-1-12-134	ILSCO	00783669635539
MRB18N	MAC	n/a
94342	Morris	00601986943420
50041	NAED	n/a
L1N	NSi Industries	00662381035080
LCCX2-12-E	Panduit	00074983425587
LCC112E	Panduit	00074983902880
LCD1-12-E	Panduit	00074983382927
BBLU-1D2	Penn-Union	00785037215886
BBLU1D2	Penn-Union	78503721588
L1N	Thomas & Betts	00783786738465
LCN112	Thomas & Betts	00783786032785
LCN12	Thomas & Betts	n/a
54857BE	Thomas & Betts	00786210199832
HDL 1 N	Thomas & Betts	n/a
L 1 N	Thomas & Betts	n/a
54858BE	Thomas & Betts	00786210898001
