HBL15W47A - Conn, W/Tight, 5-15R, 15A, 125V

Wiring Device-Kellems

$48.71 (Each)
$48.71 (Each)
$1,217.75 (Per 25)

Availability: Currently Out Of Stock

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: HBL15W47A Vendor Code HWD
Manufacturer: Wiring Device-Kellems
Manufacturer's Part Number: HBL15W47A
Description: Conn, W/Tight, 5-15R, 15A, 125V
Straight Blade Connector, 15 A, 125 V, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +60 °C Operating Temperature, Screw/Clamp Terminal, 1.85 In Diameter, Cord Mounted, 4.42 In Length, Corrosion Resistant, 0.2000 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Cord Connectors & Cord Grips
UNSPSC: 39121421 - Electrical connector assembly
UPC/EAN/GTIN: 783585131276 / 0783585131276 / 00783585131276
Weight per unit: 0.2 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $48.71 (Each)
Standard Packaging: $1,217.75 (Per 25)

Resources

Images
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Large Image
: HBL15W47A - Small Image
: HBL15W47A - Large Image
Other Links
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
: HBL15W47A - Other
Specifications Sheets
: HBL15W47A - Specification Sheet
Attachments
: HBL15W47A - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 15 A
Number of Wires: 3
Material: Thermoplastic Elastomer (Body);Holder White Nylon (Blade );Clear polycarbonate (Terminal Retainer);Nickel plated brass (Blades, Terminal Screws );White Nylon (Core );Black Elastomer (Bushing & Cone Seal);Nylon (Gotcha Ring );PBT (Strain Relief Nut)
Terminal Type: Screw;Clamp
amperage rating: 15
Poles: 2-Pole
Number of Conductors: 3
insulation: Insulated Body
Voltage Rating: 125
connection: Terminal Screws

Material, Color, and Finish

Color: Black/White
Finish: Nickel Plated (Blade, Terminal Screw)

Dimensions and Weight

Diameter: 1.85 in;47.1 mm
Length: 4.42 in;112.1 mm
Size: Standard Sized Product

Descriptions

Description: CONN, W/TIGHT, 5-15R, 15A, 125V
Product Type: Straight Blade Connector
Long Description: Straight Blade Connector, 15 A, 125 V, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +60 °C Operating Temperature, Screw/Clamp Terminal, 1.85 in Diameter, Cord Mounted, 4.42 in Length, Corrosion Resistant, 0.2000 lb
Short Description: Straight Blade Connector, 15 A, 125 V, Black/White
Special Features: Smooth Body Design
extra long description: HWDK HBL15W47A CONN, W/TIGHT, 5-15R

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +60 °C
Mounting Type: Cord Mounted
Resistance Properties: Corrosion Resistant
package quantity: 1 CT;25 PK
Standards Met: UL 498 Listed;CSA Certified C22.2
pallet quantity: 1375

Manufacturer Information

Brand: WIRING DEVICE-KELLEMS
Manufacturers Part Number: HBL15W47A
series: Watertight Devices
GTIN: 00783585131276
UPC: 783585131276

Taxonomies, Classifications, and Categories

Category Description: CORD CONNECTORS & CORD GRIPS
Type: Connector Body

Packaging

Weight: 0.2000 lb
Weight per each: 0.2
Carton: 1
Package: 25

Uses, Certifications, and Standards

nema rating: NEMA 4/4X/12/6/6P;NEMA WD-1/WD-6
standard: Certified to CSA C22.2 No. 42;IP69K rating;Listed to UL498;Meets NEMA WD-1, WD-6 And ANSI Standards;UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
Mounting: Cord
Application: Industrial/Commercial
environmental conditions: Water Tight

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of HBL15W47A.

Jump To:

Straight Blade Thermoplastic Elastomer Watertight, Industrial/Commercial Grade, ...

Our Part #: HBL15W33A
Nacogdoches Availability: Out Of Stock
Total Availability: Out of Stock

MFR Part #: HBL15W33A
Manufacturer: Hubbell Wiring Devices
Find: Similar Items
Pkg Sizes: 1 Each ($ -) ·

HBL15W33A - Hubbell Wiring Devices

Nacogdoches Availability: Out Of Stock

Total Availability: Out of Stock

Book Price

$ -

Request Quote

Call nearest store for Item Price

Spec Sheet

Call nearest store for Item Price

View Larger

Straight Blade Connector, 15 A, 125 V, 2 Poles, 3 Wires, Yellow;\/Black, -40 °C ...

Our Part #: 15W47
Nacogdoches Availability: In Stock
Total Availability: In Stock

MFR Part #: 15W47
Manufacturer: Eaton Wiring Devices
Find: Similar Items
Pkg Sizes: 10 ($334.90) ·

15W47 - Eaton Wiring Devices

Nacogdoches Availability: In Stock

Total Availability: In Stock

Book Price

$33.49

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

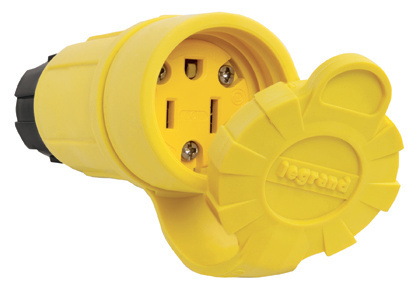

Rated Watertight For 1, 500 Psi High-Pressure Hosedown, Pass and Seymour Plugs a...

Our Part #: 15W47
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 15W-47
Manufacturer: Pass & Seymour/Legrand
Find: Similar Items
Pkg Sizes: 10 ($302.20) ·

15W47 - Pass & Seymour/Legrand

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$30.22

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

Watertite Plug, 15 A, 125 V, 2 Poles, 3 Wires, Yellow, -40 °C Operating Temperat...

Our Part #: 15W47
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 15W47
Manufacturer: Molex LLC
Find: Similar Items
Pkg Sizes: 5 ($178.30) ·

15W47 - Molex LLC

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$35.66

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

CONN, W/TIGHT, 5-15R, 15A, 125V, BK

MFR Part #: HBL15W47BK
GTIN: 00783585131283

Manufacturer: WIRING DEVICE-KELLEMS

Call our nearest location for pricing/availability.

CONN, W/TIGHT, 6-15R, 15A, 250V

MFR Part #: HBL15W49
GTIN: 00783585131306

Manufacturer: WIRING DEVICE-KELLEMS

Call our nearest location for pricing/availability.

CONN, W/TIGHT, 5-15R, 15A, 125V, CL, WIR

MFR Part #: HBL15W47AWC
GTIN: 00783585580623

Manufacturer: WIRING DEVICE-KELLEMS

Call our nearest location for pricing/availability.

Cross Referenced

These items are similar to HBL15W47A but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
15W47	Eaton Wiring Devices	00040893630946
1610-CW6P	Ericson	00782862824771
HBL15W47	Hubbell Wiring Device-Kellems	00783585013022
HBL15W47A	Hubbell Wiring Device-Kellems	00783585131276
15W47	Leviton	00078477848241
15W47	Legrand Pass & Seymour	00785007114164
15W47	Woodhead	00786788711023
