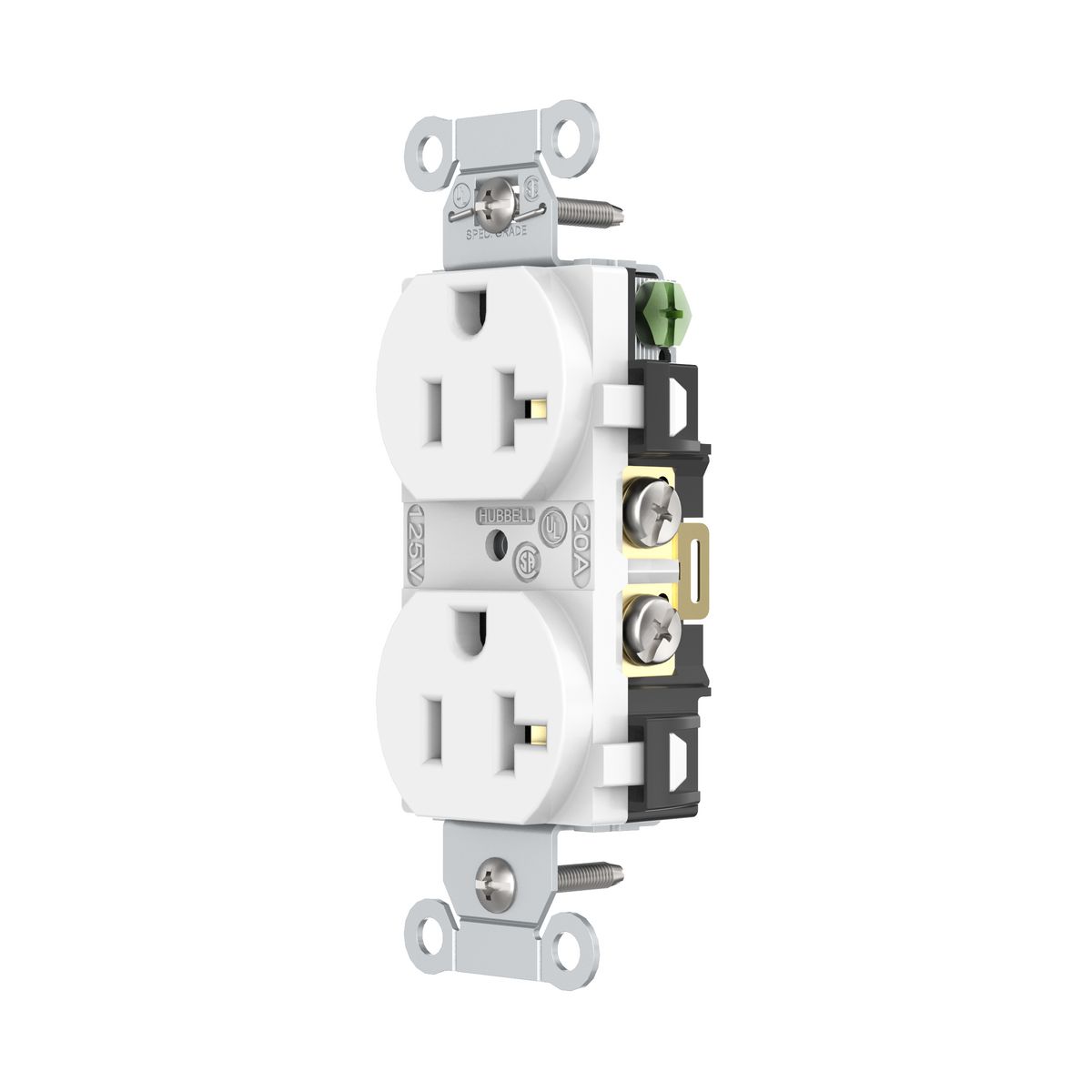

CR20LA - Dup RCPT, Comm Grade 20A 125V, 5-20R, La

Availability: Call for Availability

Buy Now

QTY:

Each

$291.12Per 100

Pass & Seymour/Legrand
Commercial Receptacle 20A/125V La

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: CR20LA Vendor Code HWD
Manufacturer: Wiring Device-Kellems
Manufacturer's Part Number: CR20LA
Description: Dup RCPT, Comm Grade 20A 125V, 5-20R, La
Duplex Receptacle, 20 A, 125 V, 2 Poles, 3 Wires, #12 to #10 Awg Compatible Wire Size, Wire Ground Connection, Wall Mount, 1.32 In Length, 0.83 In Width, 3.28 In Height, Thermoplastic, Light Almond, 0.1500 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification: Commercial Receptacles
UNSPSC: 39121406 - Electrical receptacles
UPC/EAN/GTIN: 783585127613 / 0783585127613 / 00783585127613
Weight per unit: 0.15 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Description: DUP RCPT, COMM GRADE 20A 125V, 5-20R, LA
Product Type: Duplex Receptacle
Long Description: Duplex Receptacle, 20 A, 125 V, 2 Poles, 3 Wires, #12 to #10 AWG Compatible Wire Size, Wire Ground Connection, Wall Mount, 1.32 in Length, 0.83 in Width, 3.28 in Height, ThermoPlastic, Light Almond, 0.1500 lb
Features: Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
Short Description: Duplex Receptacle, 20 A, 125 V, White
Special Features: Power Rating 1 Hp;Side Wire
extra long description: HWDK CR20LA DUP RCPT, COMM GRADE 20

Additional Information

Manufacturer Information

Taxonomies, Classifications, and Categories

Packaging

Uses, Certifications, and Standards

nema rating: NEMA Wd-6;NEMA 5-20R
Application: Residential;Commercial
standard: Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
environmental conditions: Indoor Dry unless protected by additional means
Mounting: Screw Mount
