BR3040L200R - 1PH/BR Loadcenter 200A Mlo 30/40 Cir. Al Bus Nema

Eaton

$546.66 (Each)
$546.66 (Each)

No longer available or discontinued by the manufacturer.

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: BR3040L200R Vendor Code ETN
Manufacturer: Eaton
Manufacturer's Part Number: BR3040L200R
Description: 1PH/BR Loadcenter 200A Mlo 30/40 Cir. Al Bus Nema
Main Lug Load Center, 30 Spaces, 40 Circuits, 200 A, 120/240 V Ac, #1 Awg to 300 Kcmil Wire Size, Metallic Material, Aluminum Bus Material, 14.31 In Overall Length, 5.19 In Overall Width, 29.13 In Overall Height
Slang Terms: Suggest a New Term
Categories: Load Centers & Accessories - Single Phase Main Lug Load Cen Mark as Incorrect
Suggest a New Category
Classification: Loadcenters & Covers
UNSPSC: 39121101 - Load centers
UPC/GTIN: 786676447706 / 00786676447706
Weight per unit: 43 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $546.66 (Each)

Resources

Images
: BR3040L200R - Large Image
: BR3040L200R - Small Image
: BR3040L200R - Large Image
: BR3040L200R - Large Image
: BR3040L200R - Large Image
: BR3040L200R - Large Image
: BR3040L200R - Large Image
: BR3040L200R - Large Image
Other Links
: BR3040L200R - Other
: BR3040L200R - Other
: BR3040L200R - Other
: BR3040L200R - Other
: BR3040L200R - Other
: BR3040L200R - Other
: BR3040L200R - Other
Brochures
: BR3040L200R - Brochure
Attachments
: BR3040L200R - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 200 A
Voltage Rating: 120/240 V ac
Wire Size: #1 AWG to 300 kcmil
Material: Metallic
interrupt rating: 25 kAIC
amperage rating: 200
Phase: 1
Cover Type: Cover included

Material, Color, and Finish

Bus Material: Aluminum

Dimensions and Weight

Overall Length: 14.31 in;363.5 mm
Width: 14.31
Height: 29.13
Depth: 5.19
Size: D1r

Descriptions

Product Type: Main Lug Load Center
Long Description: Main Lug Load Center, 30 Spaces, 40 Circuits, 200 A, 120/240 V ac, #1 AWG to 300 kcmil Wire Size, Metallic Material, Aluminum Bus Material, 14.31 in Overall Length, 5.19 in Overall Width, 29.13 in Overall Height
Features: Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Short Description: NEMA 3R Main Lug Load Center, 30/40 C, 200 A
Description: 1PH/BR LOADCENTER 200A MLO 30/40 CIR. AL BUS NEMA
extra long description: ETN BR3040L200R Eaton BR main lug l
Special Features: No feed-thru lugs

Additional Information

number of spaces: 30
Number of Circuits: 40
Enclosure Type: Nema 3R
for use with: Type Br 1-Inch Breakers
Overall Width: 5.19 in;131.8 mm
Overall Height: 29.13 in;739.8 mm
Circuit Breaker Compatibility: BR Circuit Breaker
Recommended Environment: Outdoor
Standards Met: UL 67 Listed;UL 50 Listed
Made in USA: yes

Manufacturer Information

Brand: Eaton Corp; Viton(R)
Manufacturers Part Number: BR3040L200R
GTIN: 00786676447706
UPC: 786676447706

Taxonomies, Classifications, and Categories

Category Description: LOADCENTERS & COVERS
Type: Main lug loadcenter

Availability

Status: Inactive

Packaging

Weight per each: 43
Carton: 1

Uses, Certifications, and Standards

Application: Power Distribution
standard: UL 67,UL 50

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of BR3040L200R.

Jump To:

Eaton Eaton BR Main Lug Loadcenter, Main Lug Only, 200 A, X5, Aluminum, Nema 3R,...

Our Part #: BRP30L200R
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: BRP30L200R
Manufacturer: Eaton Corp
Find: Similar Items
Pkg Sizes: 1 Each ($488.74) ·

BRP30L200R - Eaton Corp

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$488.74

Each

QTY:

Each

Add

Spec Sheet

View In Catalog

QTY:

Each

Add

View Larger

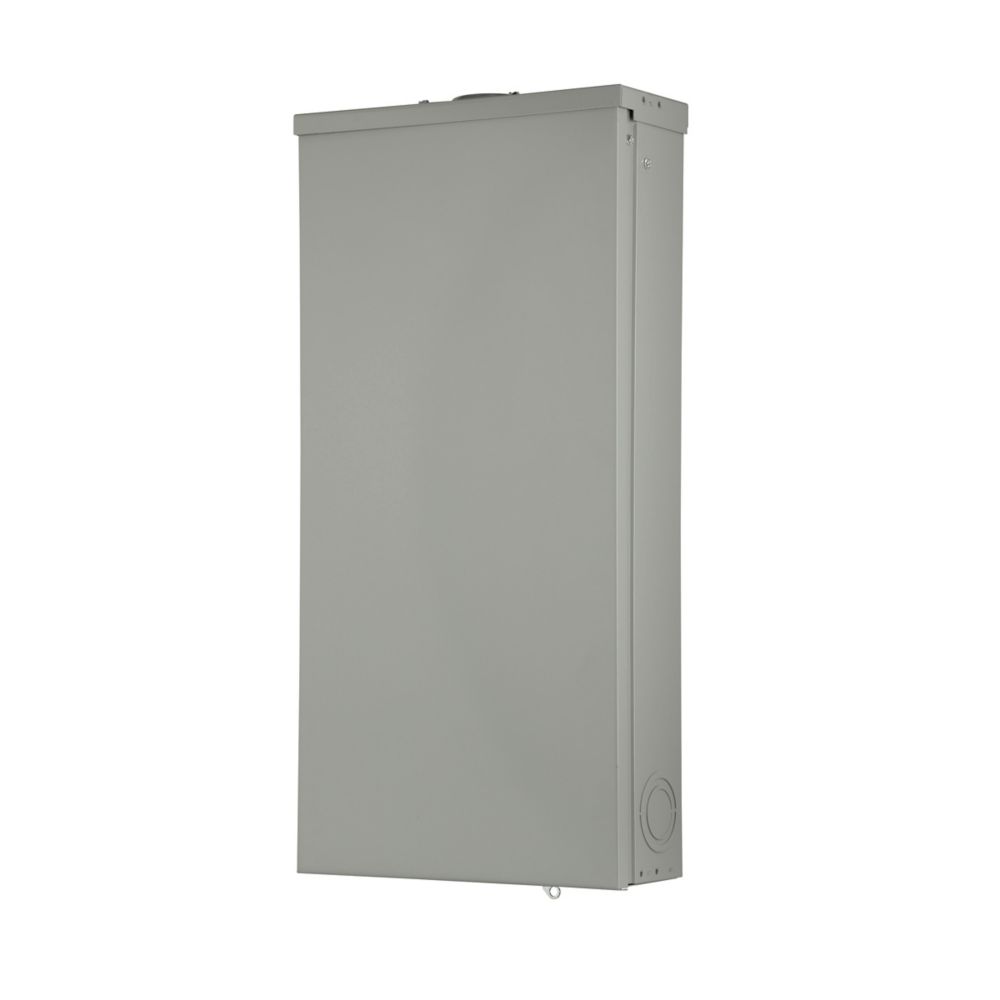

Eaton BR Main Lug Loadcenter, 200 A, D1R, Aluminum, Nema 1, Metallic, 10 Kaic, C...
