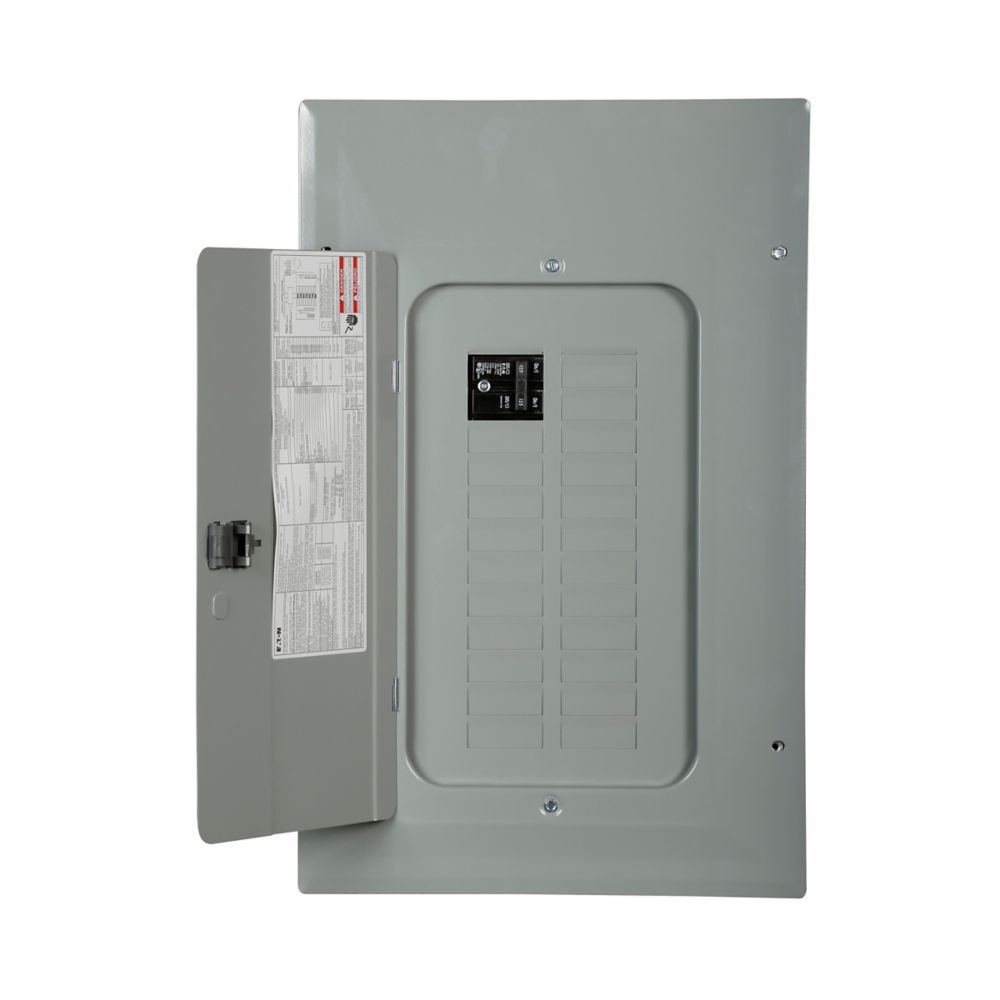

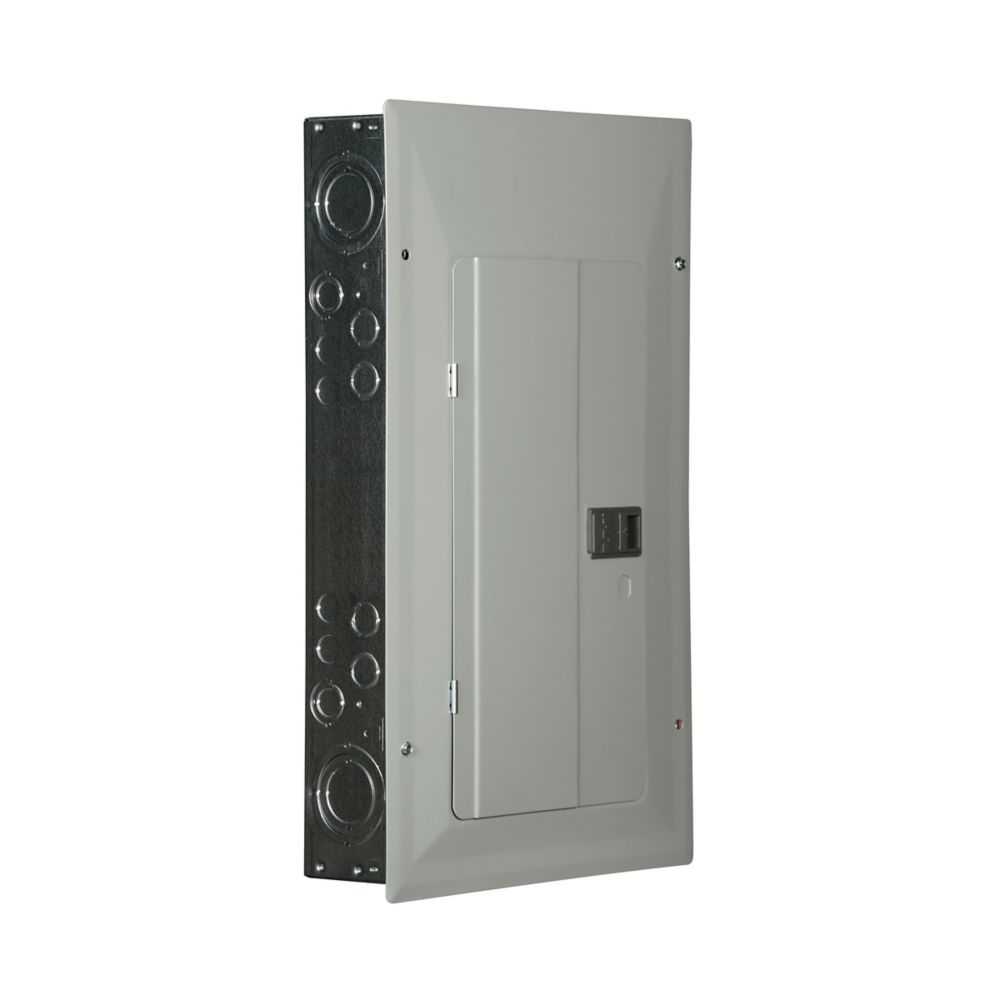

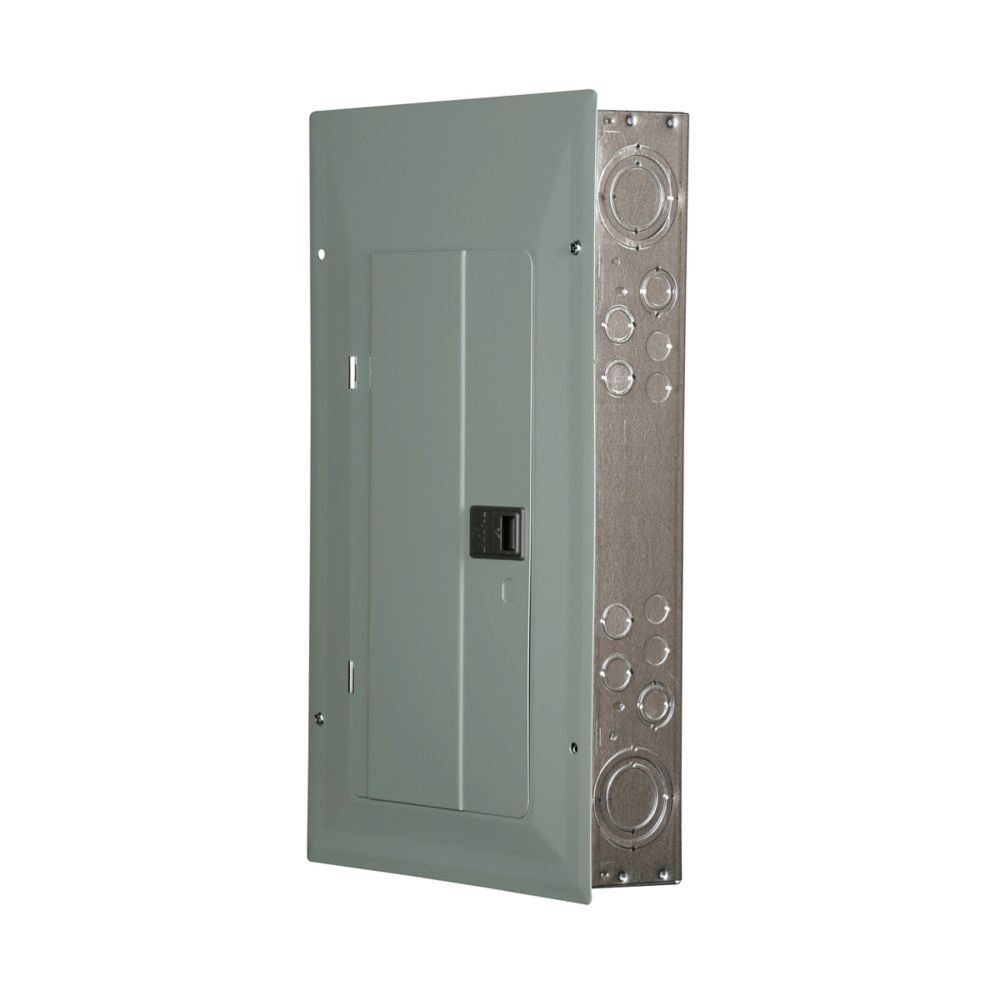

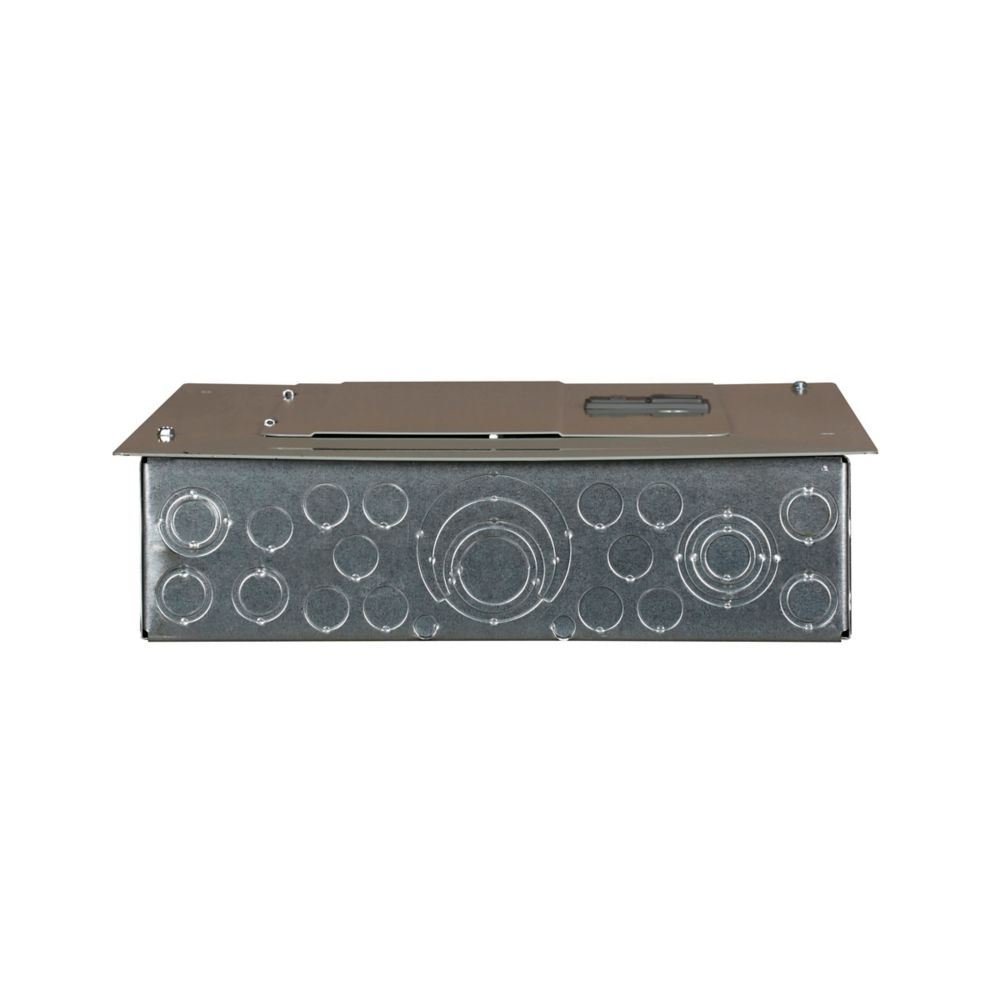

BR2024B125 - 20/24C 125A 1PH MB Loadcenter

Eaton

$390.44 (Each)
$390.44 (Each)

In-Stock: 17 available at other locations ( find a store with stock)

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: BR2024B125 Vendor Code ETN
Manufacturer: Eaton
Manufacturer's Part Number: BR2024B125
Description: 20/24C 125A 1PH MB Loadcenter
BR Style Load Center, 20 Spaces, 24 Circuits, 125 A, 120/240 V Ac, #4 to 2/0 Awg Wire Size, Metallic Material, Aluminum Bus Material, 14.31 In Overall Length, 3.88 In Overall Width, 21 In Overall Height
Slang Terms: Suggest a New Term
Categories: Load Centers & Accessories - Single Phase Main Breaker Load Mark as Incorrect
Suggest a New Category
Classification: Loadcenters & Covers
UNSPSC: 39121101 - Load centers
UPC/GTIN: 786676444453 / 00786676444453
Weight per unit: 24 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $390.44 (Each)

Stock Availability

Jacksonville - FL: 0 (Find nearest stock)
All Stores: 17

Resources

Images
: BR2024B125 - Small Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
: BR2024B125 - Large Image
Attachments
: BR2024B125 - Specification Sheet
Other Links
: BR2024B125 - Other
: BR2024B125 - Other
: BR2024B125 - Other
: BR2024B125 - Other
: BR2024B125 - Other
: BR2024B125 - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Amperage Rating: 125
Cover Type: Cover included
Current Rating: 125 A
Interrupt Rating: 10 kAIC
Material: Metallic
Phase: 1
Voltage Rating: 120/240 V ac
Wire Size: #4 to 2/0 AWG

Material, Color, and Finish

Bus Material: Aluminum

Dimensions and Weight

Depth: 3.88
Height: 16.75
Overall Length: 14.31 in;363.5 mm
Size: C1
Width: 14.31

Descriptions

Description: 20/24C 125A 1PH MB LOADCENTER
Extra Long Description: ETN BR2024B125 Eaton BR main breake
Features: Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
Long Description: BR Style Load Center, 20 Spaces, 24 Circuits, 125 A, 120/240 V ac, #4 to 2/0 AWG Wire Size, Metallic Material, Aluminum Bus Material, 14.31 in Overall Length, 3.88 in Overall Width, 21 in Overall Height
Product Type: BR Style Load Center
Short Description: BR Style Load Center, 20/24C, 125 A, C1 Box Size
Special Features: No Feed-Thru Lugs;Cover Included

Additional Information

Circuit Breaker Compatibility: BR Circuit Breaker
Enclosure Type: Nema 1
For Use With: Type Br 1-Inch Breakers
Made In USA: yes
Number Of Circuits: 24
Number Of Spaces: 20
Overall Height: 21 in;533.4 mm
Overall Width: 3.88 in;98.4 mm
Recommended Environment: Indoor
Standards Met: UL 67 Listed;UL 50 Listed

Manufacturer Information

Brand: Viton(R)
Manufacturers Part Number: BR2024B125
GTIN: 00786676444453
UPC: 786676444453

Taxonomies, Classifications, and Categories

Category Description: LOADCENTERS & COVERS
Type: Main breaker loadcenter

Packaging

Weight per each: 24
Carton: 1

Uses, Certifications, and Standards

Application: Residential
Mounting: Combination Mount
Standard: UL 67,UL 50
