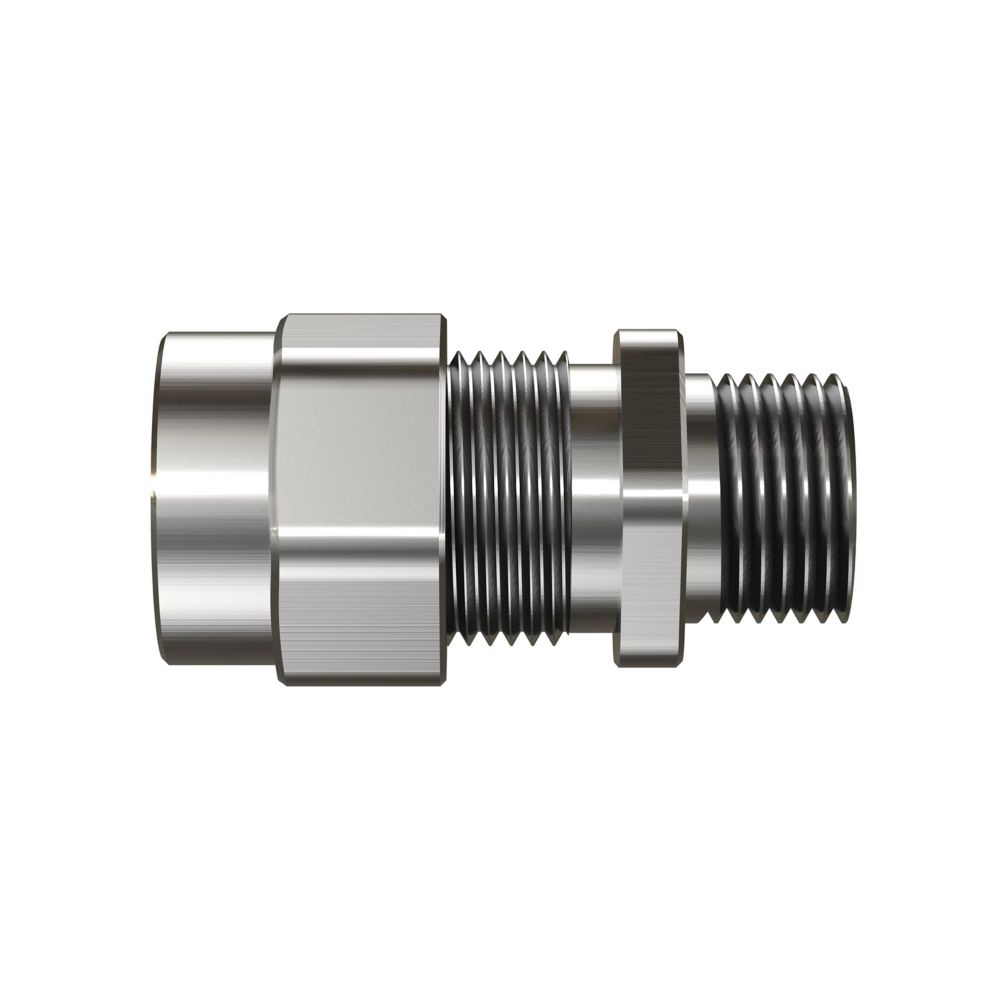

CGB192 - 1/2" Dia Male Cord Grip (.125-.250)

Availability: In Stock Locally

Buy Now

QTY:

Each

Quick Specs

Catalog Number: CGB192 Vendor Code CRS
Manufacturer: Eaton
Manufacturer's Part Number: CGB192
Description: 1/2" Dia Male Cord Grip (.125-.250)
Cord Gland, Steel With Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing) Material, CGB Model, 0.125 to 0.25 In Cable/Cord Size, 2.063 In Length, 1.23 In Diameter, Straight Male Connection, 1/2 In Thread Size, -25 °C Operating Temperature, +40 °C Operating Temperature, 0.19 LB
Slang Terms
Categories: Condubx, Non-Metallic CBL, S. - Cable & Cord Grips Mark as Incorrect
Classification: Cord Connectors & Cord Grips
UNSPSC: 39121311 - Electrical fittings
UPC/GTIN: 782274130903 / 00782274130903
Weight per unit: 0.19 (lbs/each)

Price & Packaging

Resources

Features

Material: Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing)
connection: Male NPT

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Cord Gland
Long Description: Cord Gland, Steel with Zinc Electroplate and Chromate Finish Coat (Body, Gland Nut);Neoprene (Bushing) Material, CGB Model, 0.125 to 0.25 in Cable/Cord Size, 2.063 in Length, 1.23 in Diameter, Straight Male Connection, 1/2 in Thread Size, -25 °C Operating Temperature, +40 °C Operating Temperature, 0.19 lb
Short Description: Cord Gland, 1/2", Aluminium, .375-.500 DIA MALE
Special Features: Rugged, Durable Construction Protects Cords and Cables from Damage and Compact Design;Weatherproof Seal on Outer Sheath of Cable
Description: 1/2" DIA MALE CORD GRIP (.125-.250)
Features: They are also listed for use with tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER. When installed in accordance with NEC501.10(B)(4), CGB, CGD, CGE and CGFP non-armoured glands are suitable for use in Class I, Division 2 hazardous locations. Crouse-Hinds series CGB, CGD, CGE and CGFP non-armoured glands are installed to provide a means for passing a cord, unarmoured cable or flexible conduit into an enclosure. The glands form an environmental seal for cord or unarmoured round
extra long description: CRS-H CGB192 1/2 NPT MALE CORD/CAB

Additional Information

Cable/Cord Size: 0.125 to 0.25 in
Enclosure Type: Class I Div 2;NEMA 3R
includes: Standard Neoprene Bushing
for use with: Flexible Cords Including Type S, SO, STO, ST, SJ, SJT, SJTO and SVO, Tray Cable Types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER Cables Steel/Copper Wire Braided Cable Steel Wire Armoured
Connection Type: Straight Male
Thread Size: 1/2 in
Minimum Operating Temperature: -25 °C
Maximum Operating Temperature: +40 °C
Standards Met: cULus Listed - UL File No. E23223;NEC501.10(B)(4)
package quantity: 1 CT;25 PK
dimensions: 2.0200 IN X 1.2300 IN X 1.2300 IN

Manufacturer Information
