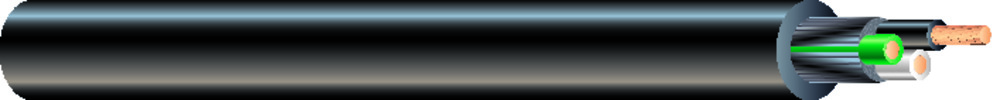

SE00W103BK250 - 10/3 Seoow 600V Black Cord 250' Reel

Availability: In Stock Locally

Buy Now

QTY:

Feet

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: SE00W103BK250 Vendor Code COR
Manufacturer: Cables & Cords
Manufacturer's Part Number: 55039308
Description: 10/3 Seoow 600V Black Cord 250' Reel
Portable Cord, Stranded, 104/30 MM Core Strands, #10 Awg Conductor Size, Copper Conductor Material, Thermoplastic Elastomer (Tpe) Jacket Material, Thermoplastic Elastomer (Tpe) Insulation Material, 30 A, Black, White and Red, 3 Conductors, 250 FT Overall Length, 0.66 In Outside Diameter, 0.045 In Insulation Thickness, -50 °C Operating Temperature, +105 °C Operating Temperature, 0.27 LB/FT
Slang Terms: Suggest a New Term
Categories: Enhanced Commodity Codes - Wire Mark as Incorrect
Suggest a New Category
Classification: Portable Cords, Voice, Data, Video Wire & Cable
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886866340 / 00032886866340
Weight per unit: 0.245 (lbs/ft)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Description: 10/3 SEOOW 600V BLACK CORD 250' REEL
Product Type: Portable Cord
Long Description: Portable Cord, Stranded, 104/30 mm Core Strands, #10 AWG Conductor Size, Copper Conductor Material, Thermoplastic Elastomer (TPE) Jacket Material, Thermoplastic Elastomer (TPE) Insulation Material, 30 A, Black, White and Red, 3 Conductors, 250 ft Overall Length, 0.66 in Outside Diameter, 0.045 in Insulation Thickness, -50 °C Operating Temperature, +105 °C Operating Temperature, 0.27 lb/ft
Features: Coleman Cable's Seoprene(R) Thermoplastic Elastomer cord products are technologically advanced to meet the requirements of today's demanding commercial and industrial applications. They provide the chemical resistance characteristics of PVC with highly flexible properties.
Short Description: 250 ft Portable Cord, Stranded, 10/3 AWG SEOOW, 0.66 in
Additional Information: Chemical Resistant;Oil Resistant;Water Resistant
extra long description: SWC 55039308 10-104 CU 3/C BLACK/WH

Additional Information

Solid/Strand: Stranded
Core Strands: 104/30 mm
outside diameter: 0.66 in
Made in USA: yes
Insulation Thickness: 0.045 in
Minimum Operating Temperature: -50 °C
Maximum Operating Temperature: +105 °C
for use with: Industrial Control and Robotic System;Motor Control;Outdoor;Pushbutton Remote Control;Stage Equipment and Lighting
Standards Met: RoHS Compliant;NEC 400;Federal Specification JC-580B;UL Listed;CSA Certified;MSHA
media: Yes
