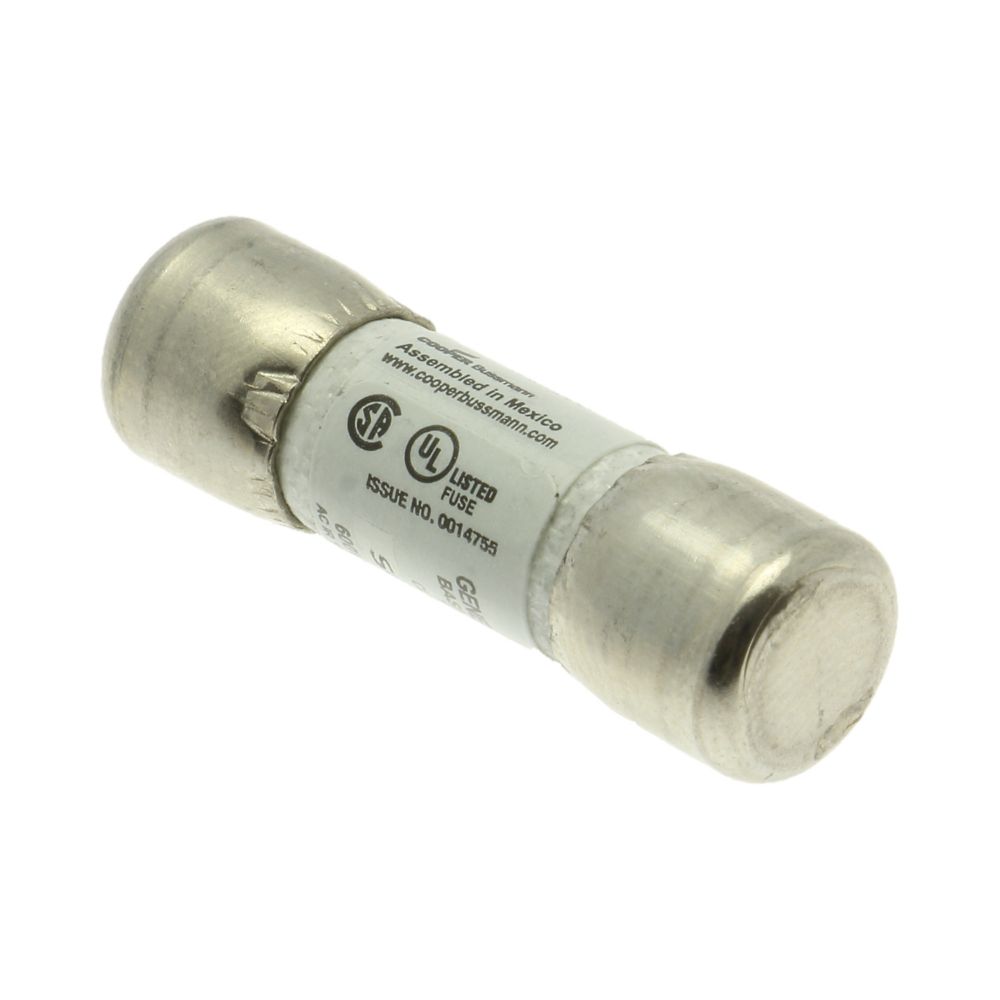

SC15 - 15A 600V TD Class G Fuse

Eaton Bussmann Series

$12.69 (Each)
$12.69 (Each)
$126.90 (Per 10)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Quick Specs

Catalog Number: SC15 Vendor Code BUS
Manufacturer: Eaton Bussmann Series
Manufacturer's Part Number: SC-15
Description: 15A 600V TD Class G Fuse
Time Delay Fuse, G Class Fuse, 12 S @ 200% Response Time, Ferrule End X Ferrule End Connection, 15 A, 600 V Ac;170 V DC, 0.41 In Diameter, 1.31 In Overall Length, 0.02 LB
Slang Terms: Suggest a New Term
Categories: Distribution Fuses - Dual Element Mark as Incorrect
Suggest a New Category
Classification: Fuses & Fuse Accessories
UNSPSC: 39121609 - Midget fuses
UPC/EAN/GTIN: 051712250153 / 5027590066327 / 00051712250153
Weight per unit: 0.02 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $12.69 (Each)
Carton: $126.90 (Per 10)

Resources

Images
: SC15 - Small Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Large Image
: SC15 - Video
Attachments
: SC15 - Specification Sheet
Specifications Sheets
: SC15 - Specification Sheet
: SC15 - Specification Sheet
Other Links
: SC15 - Other
: SC15 - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Features

Current Rating: 15 A
Voltage Rating: 600 V ac;170 V dc
interrupt rating: V ac:100 kAIC (RMS Symmetrical);V dc:10 kAIC
amperage rating: 15 Amp
connection: Ferrule End X Ferrule End

Dimensions and Weight

Diameter: 0.41 in
Overall Length: 1.31 in
Size: 0.41 In Diameter X 1.31 In Length

Descriptions

Product Type: Fuse; Time Delay Fuse
Description: 15A 600V TD CLASS G FUSE
Long Description: Time Delay Fuse, G Class Fuse, 12 s @ 200% Response Time, Ferrule End x Ferrule End Connection, 15 A, 600 V ac;170 V dc, 0.41 in Diameter, 1.31 in Overall Length, 0.02 lb
Features: Basic protection Class G size-rejecting, current limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A time-delay. Time-delay – 12 seconds (minimum) at 200% of rated current.
Short Description: Fuse, 15 A, 600 VAC/170 V dc, Time Delay, G Class
extra long description: BUSS SC-15 BUSS SC FUSE CLASS G CLA
Special Features: Rejection Style

Additional Information

Fuse Class: G Class
Response Time: 12 s @ 200%
Connection Type: Ferrule End x Ferrule End
Standards Met: CE Certified;UL Listed;Std. 248-5, Class G, Guide JDDZ, File E4273;CSA Certified;C22.2 No. 248.5, Class 1422-01, File 53787
package quantity: 4 CT
Made in USA: yes
media: Yes
dimensions: 0.4100 IN X 0.4100 IN X 1.3100 IN
class: G

Manufacturer Information

Brand: Eaton
Manufacturers Part Number: SC-15
GTIN: 00051712250153
UPC: 051712250153

Taxonomies, Classifications, and Categories

Category Description: Fuses & Fuse Accessories
Type: FUSE

Packaging

Weight: 0.02 lb
Weight per each: 0.02
Carton: 10

Uses, Certifications, and Standards

Application: Fusible Branch Panel Boards;HVAC Branch Circuit Protection
standard: CE Marked,RoHS Compliant
