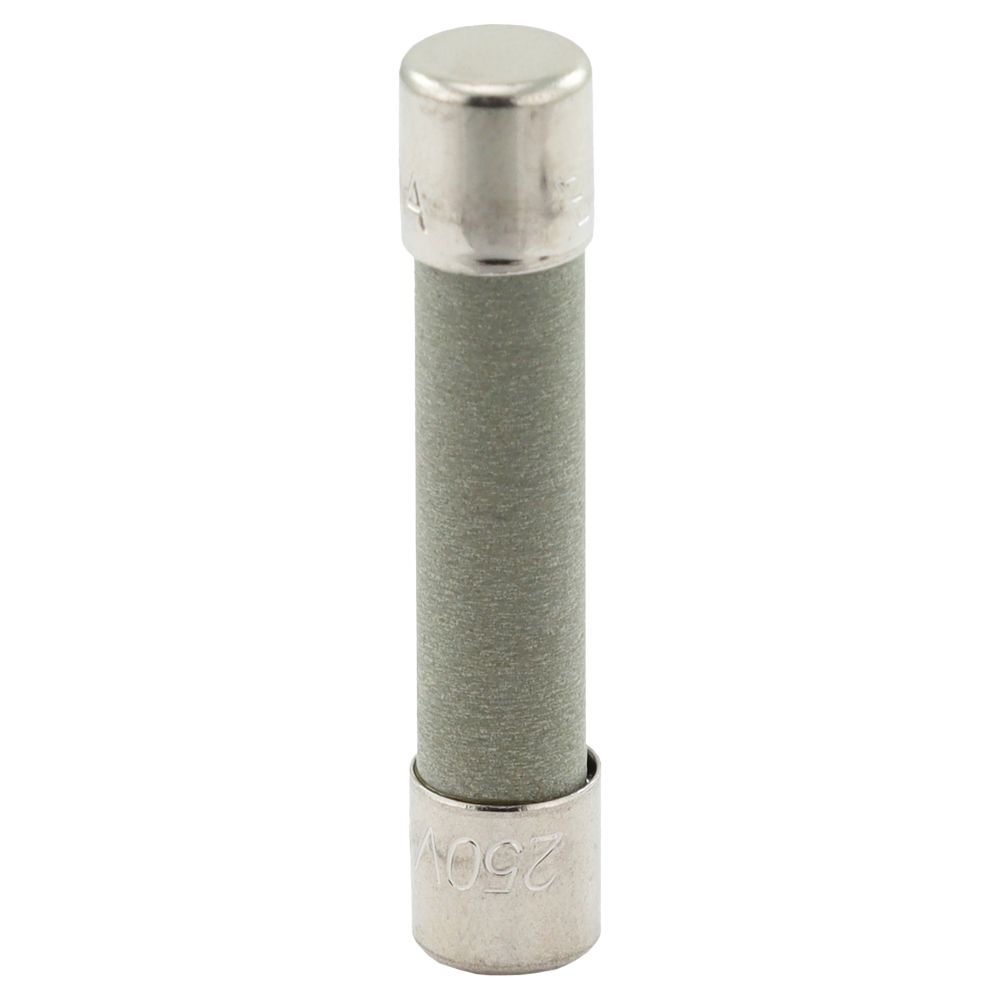

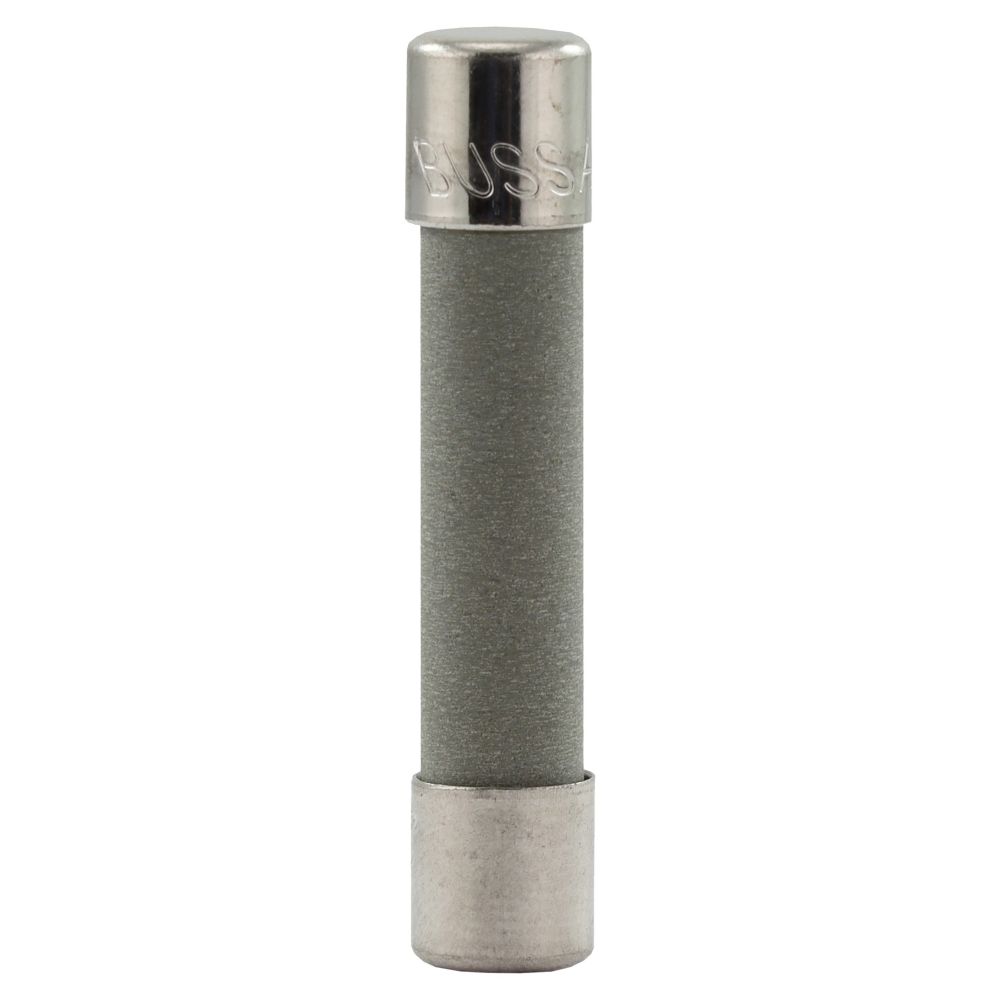

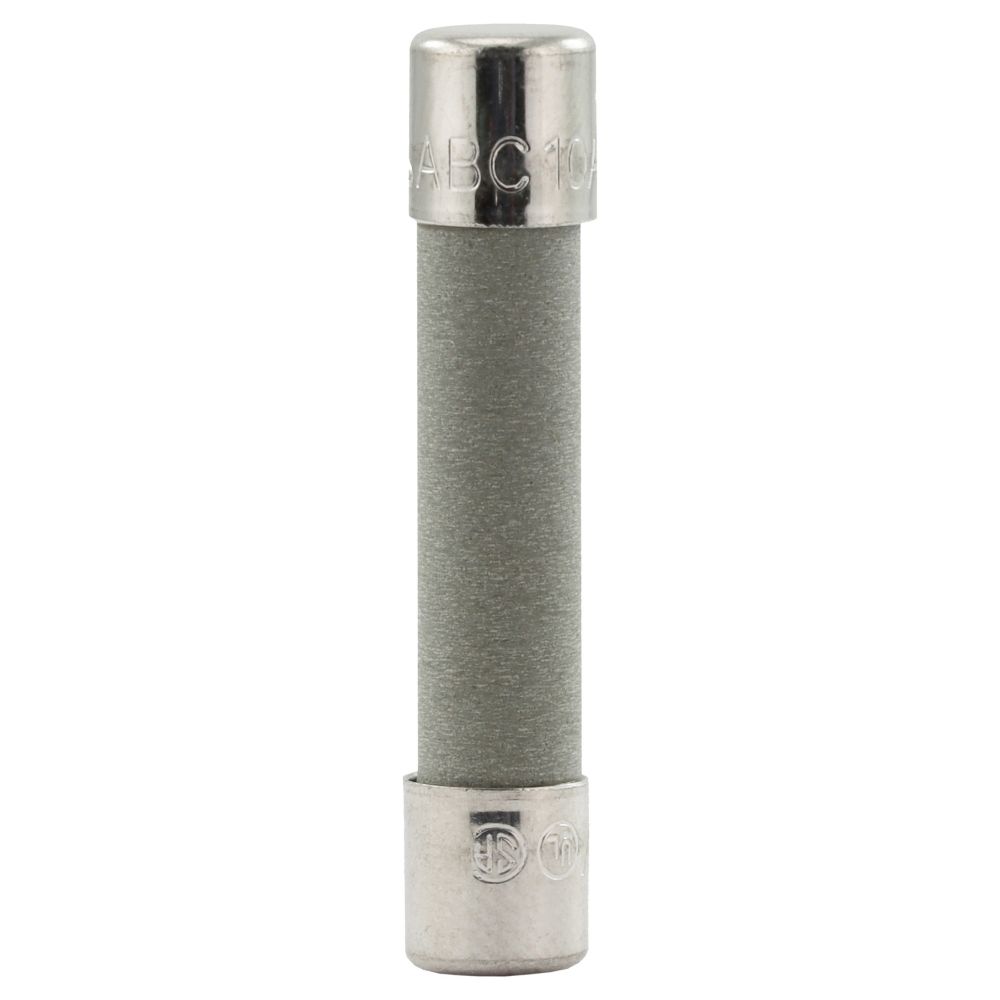

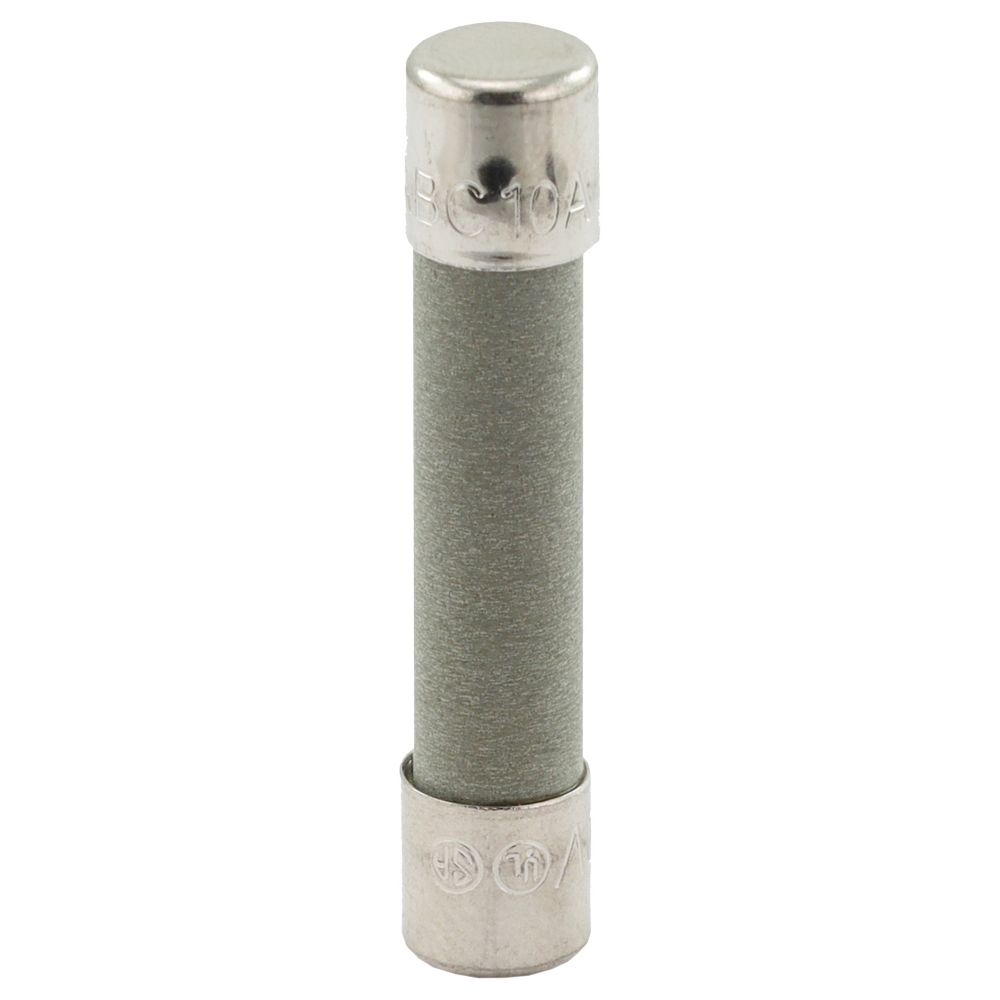

ABC10R - 10A 250V 1/4X1-1/4 Fa Ceramic Fuse

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: ABC10R Vendor Code BUS
Manufacturer: Eaton
Manufacturer's Part Number: ABC-10-R
Description: 10A 250V 1/4X1-1/4 Fa Ceramic Fuse
Fuse, Fast Acting Fuse Speed, 4 H @ 100%;60 Min @ 135%;120 S @ 200% Response Time, Ferrule End X Ferrule End Connection, 10 A, 250 V Ac;125 V DC, Ceramic (Tube);Brass (End Cap) Material, Ferrule Terminal, 0.250 In Diameter, 1.292 In Overall Length, 0.01 LB
Slang Terms: Suggest a New Term
Categories: Fuses - Small Dimension Fuses Mark as Incorrect
Suggest a New Category
Classification: Glass Fuses (and Ceramic)
UNSPSC: 39121611 - Ceramic fuses
UPC/EAN/GTIN: 051712646161 / 5027590222471 / 00051712646161
Weight per unit: 0.01 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Dimensions and Weight

Descriptions

Description: 10A 250V 1/4X1-1/4 FA CERAMIC FUSE
Product Type: Fuse
Long Description: Fuse, Fast Acting Fuse Speed, 4 h @ 100%;60 min @ 135%;120 s @ 200% Response Time, Ferrule End x Ferrule End Connection, 10 A, 250 V ac;125 V dc, Ceramic (Tube);Brass (End Cap) Material, Ferrule Terminal, 0.250 in Diameter, 1.292 in Overall Length, 0.01 lb
Short Description: 10 A, 250 VAC/125 V dc, Fast Acting Fuse, Ceramic
Features: Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse form
extra long description: EFSE ABC-10-R ABC 10A BUSS FA 5-IN
Special Features: Interrupt Rating 200 Amp at 250 Vac, 10000 Amp at 125 Vac/Vdc, Material Ceramic Tube, Nickel Plated Brass Endcap, ROHS Compliant

Additional Information

Response Time: 4 h @ 100%;60 min @ 135%;120 s @ 200%
Connection Type: Ferrule End x Ferrule End
Fuse Speed: Fast Acting
Standards Met: UL Listed;Std. 248-14;Guide JDYX File E19180 up to 15 A;UL Recognized;Guide JDYX2;File E19180;18-30 A;CSA Certified;Class 1422-01 and 1422-30;File 53787;RoHS Compliant;CE Certified

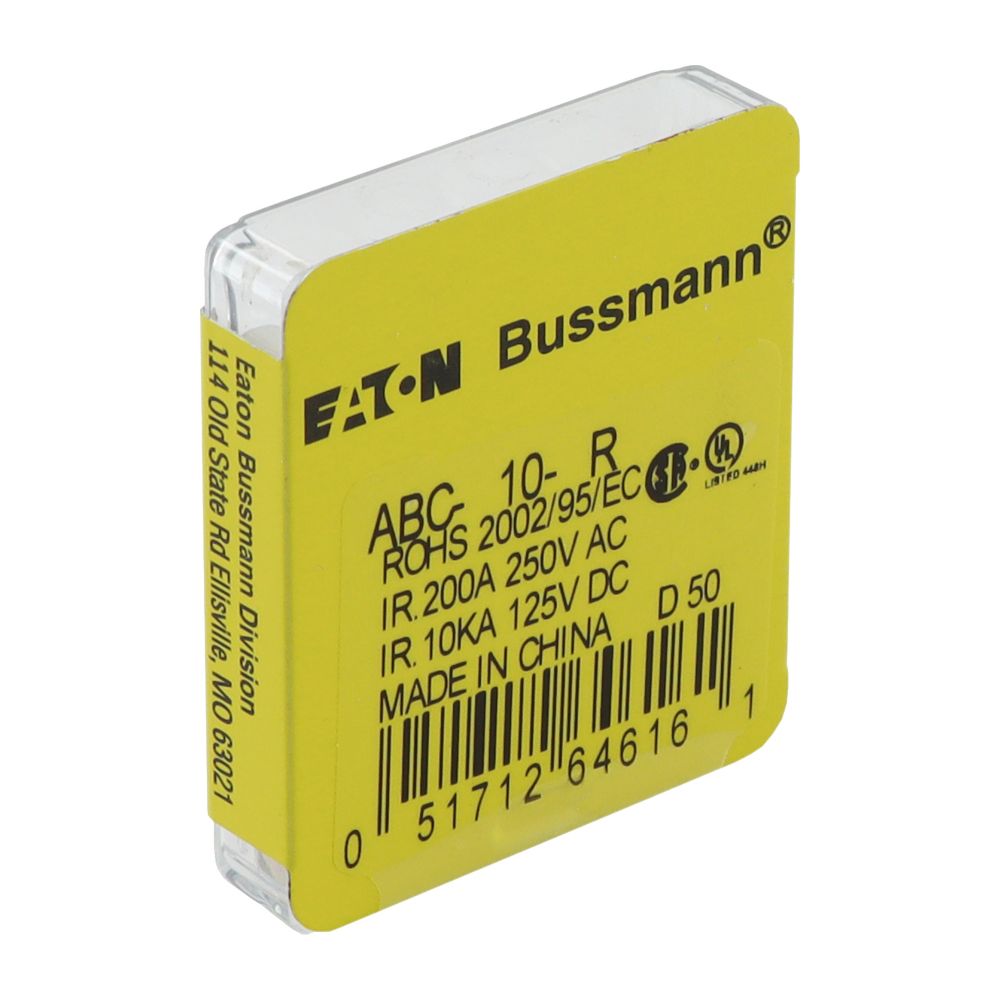

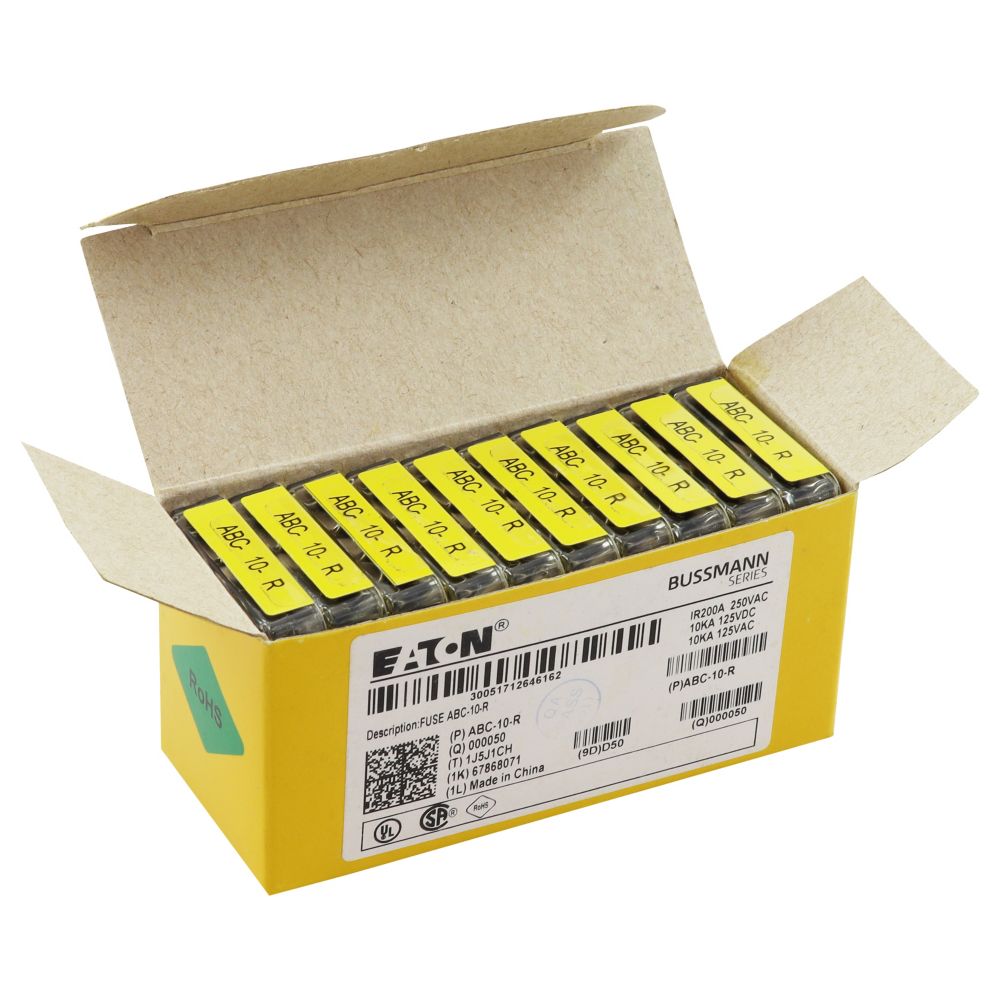

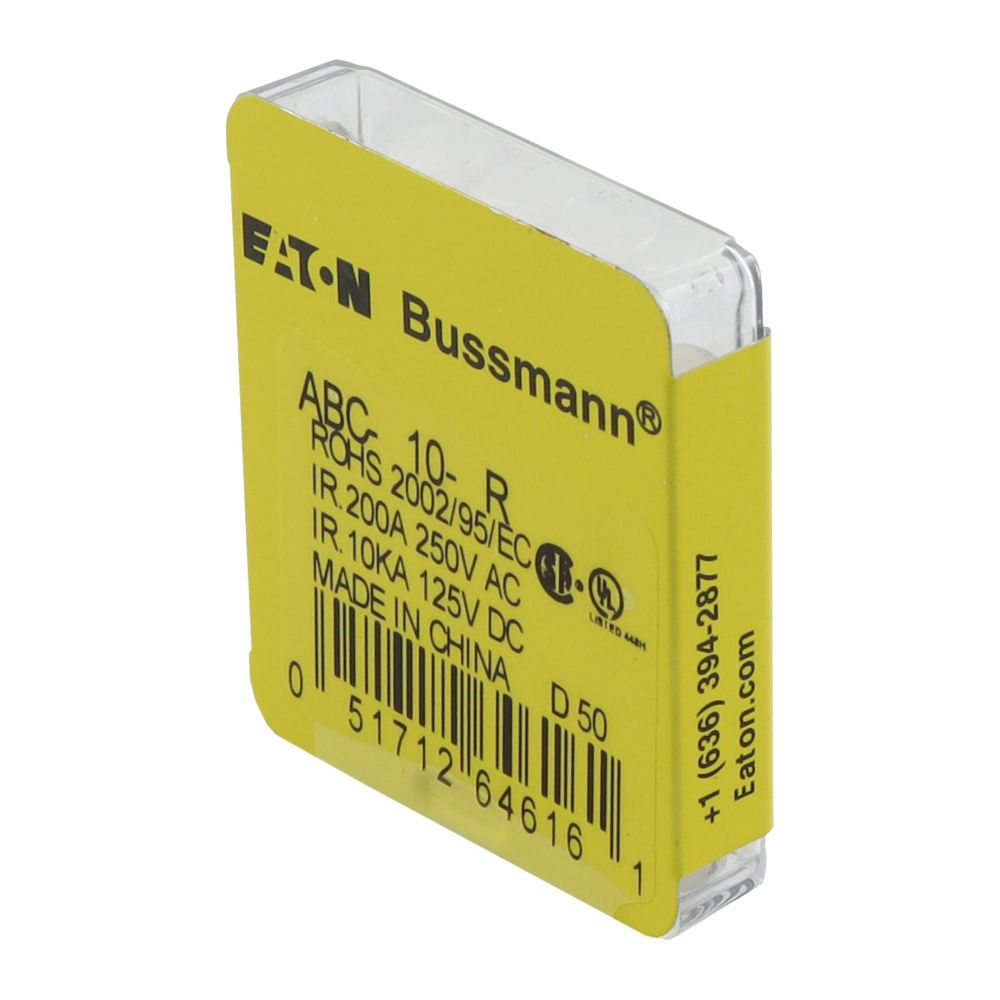

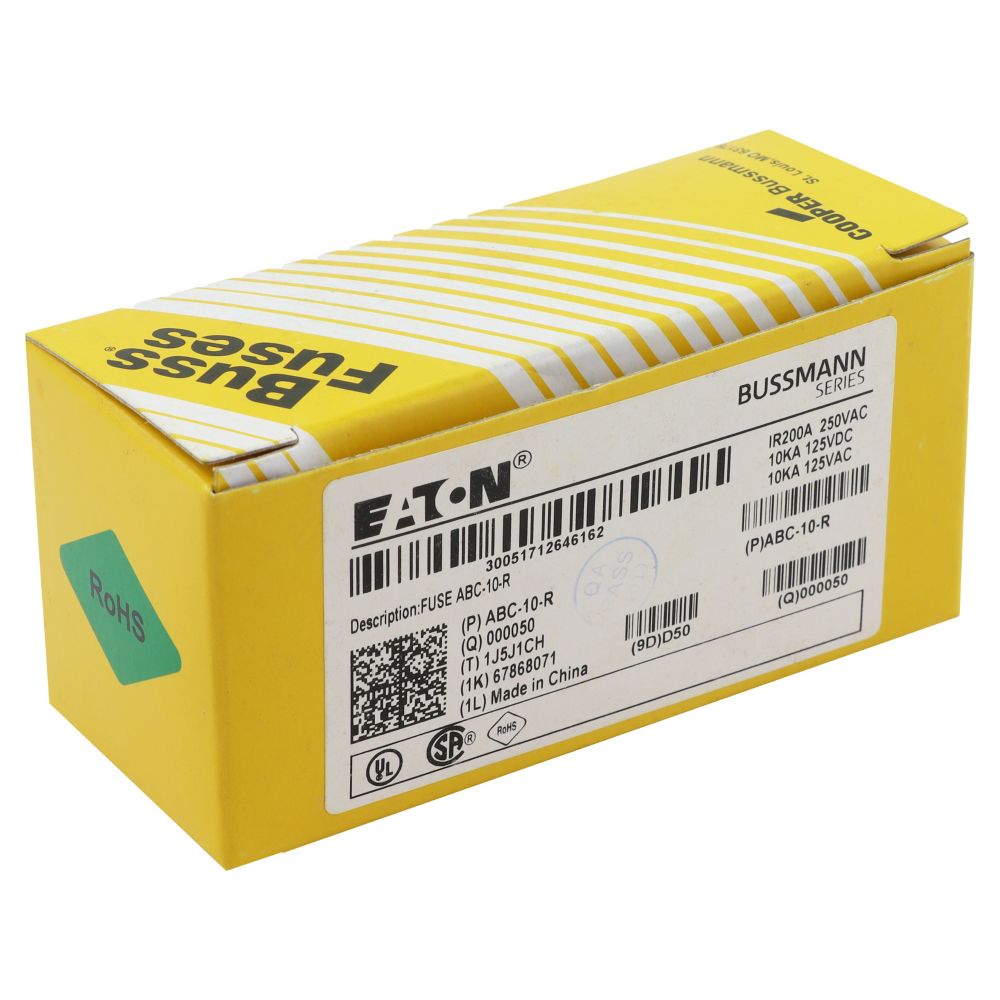

package quantity: 5 CT;1 PK
dimensions: 1.2835 IN X 0.2520 IN X 0.2520 IN
type of indicators: Non-Indicating
